Focus on providing solutions for outdoor digital media and LED industrial applications
| Place of Origin: | China |
|---|---|
| Brand Name: | Sysolution |
| Certification: | FCC，CE certification |
| Model Number: | SY160 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | One piece of equipment per box. Accessories include: 1 USB cable, 1 DVI cable, 1 VGA cable, and 1 HDMI cable |
| Delivery Time: | 2-3 working days |
| Payment Terms: | T/T,PayPal |
| Supply Ability: | 30 units per month |
| Input Voltage: | AC-100-240V-50/60HZ | Rated Power（W）: | 45 |
|---|---|---|---|
| Operating Temperature: | 0℃ ~ 45℃ | Output: | 16 Ethernet Ports |
| Input: | HDMI2.0×1, DP1.2×1 (choose One); HDMI1.4×1 | ||
| Highlight: | led sign controller,led control card |
||

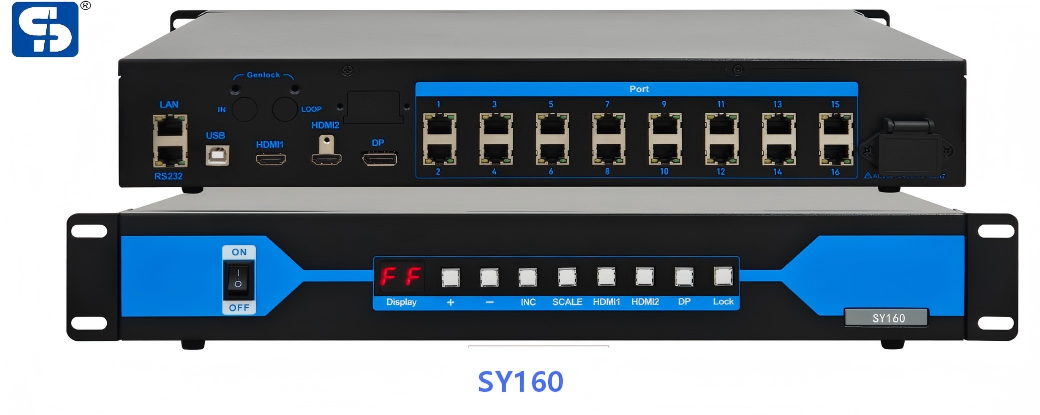

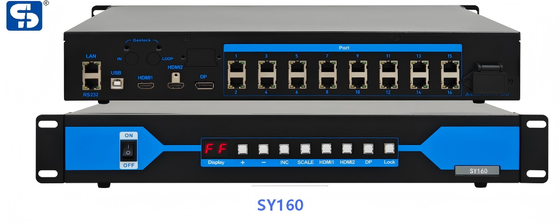

The SY160 is a 16-ports dual-purpose video processor launched by Sysolution, specifically designed for entertainment applications. Featuring powerful signal processing capabilities, it supports 4K ultra-HD display resolution and offers multiple control options; this user-friendly, feature-rich pure hardware device supports up to 10.4 million pixels. It delivers exceptional stability and outstanding value for money.
Primary application scenarios: exceptional visual experience, user-friendly operation, and outstanding cost-effectiveness – offering significant advantages for entertainment venues such as bars and KTVs.
| Basic Parameters | ||
| Load capacity | Single Network | Maximum load: 655360 pixels; Network port load mode (Width × Height): 1280×512 |
| Whole Product | Maximum load: 10.4 million pixels | |
| Output resolution |
1. The number of pixels shall be controlled within 7.8 million. 2. Maximum width: 15360; Maximum height: 7680 |
|
| Input resolution |
Supports up to 3840×2160@60Hz video source input with backward compatibility. |
|
<img alt="" src="/photo/sysolution/editor/20260817193534_59972.jpg <p> </p> <p> </p> <p> </p> <table border=" 1"="" cellpadding="0" cellspacing="0" style="width: 567px; overflow-wrap: break-word;"> Electrical parameters input voltage DC 5V rated power 25W working condition working temperature -20℃ - 60℃ Work environment humidity 5% RH–95% RH – No coagulation Chassis specifications 1U Physical dimension Chassis dimension:482mm×250mm×66.7mm Net Weight 3.1Kg Package Box size 515 X 130 X 355mm accessories 1×USB cable ,1×HDMI cable,1×DP cable,1×certificate,1×power line Single-unit gross weight 4.2 kg – Note: Includes all wire cables and packaging. Repackaging method 3 units in one box Certificates CE,RoHS,FCC
