Focus on providing solutions for outdoor digital media and LED industrial applications
| Place of Origin: | China |
|---|---|
| Brand Name: | Sysolution |
| Certification: | FCC，CE certification |
| Model Number: | S70 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | One piece of equipment per box. Accessories include: 1 USB cable, 1 DVI cable, 1 VGA cable, and 1 HDMI cable |
| Delivery Time: | 2-3 working days |
| Payment Terms: | T/T,PayPal |
| Supply Ability: | 30 units per week |
| Input Voltage: | AC-100-240V-50/60HZ | Rated Power（W）: | 45 |
|---|---|---|---|
| Operating Temperature: | 0℃ ~ 45℃ | Box Size（mm）: | 335x440x88（Length X Width X Height） |
| Outer Packing Size（mm）: | 540×450×190（Length X Width X Height） | Net Weight（KG）: | 6.5kg |
| High Light: | led sign controller,led control card |
||
S70S is a professional processor integrates 4K master control and powerful 4K multi-screen video processing together, developed by Sysolution. It is easy to operate and can simplify the site set up environment with richful functions; support ultra-high definition (UHD), high definition (HD) interface mixed input; while processing 5 different input signal sources.
With 20 gigabit network port outputs, the maximumuploading capacity is 10.4 million pixels. It adopts high-performance image processing chip and advanced interlaced image adaptive processing technology and ultra-clear noise reduction engine to eliminate video image motion dragging and jagged phenomenon; while video image enhancement technology to making the image more clear and delicate, rich in detail, full of color, stable image quality.
S70S is applied to large stage theater performance, exhibitions, bars, KTV and many other project application scenarios of large LED display, hybrid display.
| Loading capacity | Single Network Port | 650,000 pixel point |
| Whole machine | 10.4 million pixel points | |
| Maximum width pixels | Whole machine | 15360 |
| Maximum height pixels | Whole machine | 15360 |
Front Panel
| Front Panel Description | |||
| No. | Button | Description | |
| 1 | Power Switch | device power on/off | |
| 2 | LCD | Display operation menu | |
| 3 | Operation button | Knob button for menu selection, Back button | |
| 4 | Input source switching buttons | DVI1 | DVI1 Input port/number key 1 |
| DVI2 | DVI2 Input port/number key 2 | ||
| HDMI1 | HDMI1 Input port/number key 3 | ||
| HDMI2 | HDMI2 Input port/number key 6 | ||
| HDMI3 | HDMI3 Input port/number key 7 | ||
| DP | DP Input port/number key 8 | ||
| 5 | Function buttons | Win | Layer selection/number key4 |
| TEMPLATE | Multi-screen template shortcut key | ||
| SIZE | Adjustment screen reseller shortcut/number key 9 | ||
| FREEZE | Image black screen/number key 0 | ||
| MODE | Loading Scene Shortcuts | ||

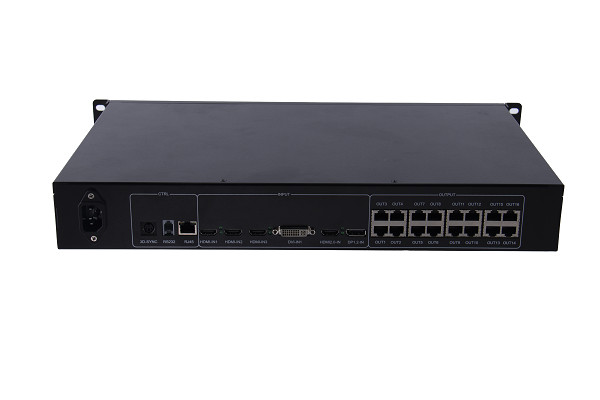

Back Panel
| Input Interface | ||
| Interface | Quantity | Description |
|
HDMI2.0 (HDMI3) |
1 |
Only one signal can be input at the same time. support maximum 3840×21Hz60@60/7680×1080@60Hz resolution video source input. Support custom resolution. Ultimate width:7680(7680×1080@60Hz) Ultimate height:7680(1080×7680@60Hz) Ultimate height |
| DP1.2 | 1 | |
|
HDMI1.3 (HDMI1,HDMI2) |
2 |
Supports up to 2304×1152@60Hz resolution video source input. Supports custom resolutions. Ultimate width:3840(3840×640@60Hz) Ultimate height:3840(640×3840@60Hz) Interlace signal input is not support. |
| DVI(DVI1,DVI2) | 2 |
Supports up to 2304×1152@60Hz resolution video source input. Supports custom resolutions. Ultimate width:3840(3840×640@60Hz) Ultimate height:3840(640×3840@60Hz) Interlace signal input is not supported. |
| Output Interface | ||
| Interface | Quantity | Description |
| Network port | 20 | It can load up to 10.4 million pixels, up to 15360 pixels in wide and up to 15360 pixels in high, and can be stitched up and down at will. |
| Audio Interface | ||
| Interface | Quantity | Description |
| AUDIO IN | 1 | External audio input source |
| AUDIO OUT | 1 | Audio output, can be set to output any window signal source audio or external audio input source. |
| Control connector | ||
| Interface | Quantity | Description |
| LAN | 1 | 100 megabit network port to control devices through the network |
| RS232 | 1 | Serial port, interfacing with central control |
| USB | 1 | 1×USB 2.0 (Type-B, square port): upper computer control interface |
| Backup and recovery | ||
| Interface | Quantity | Description |
| SD card | 1 | Backup configuration parameters to SD card, restore configuration parameters from SD card |
| Extended Function Interface | ||
| 3D | 1 | Connection to 3D transmitter; (reserved interface, customized function) |
| SENSOR | 1 | Connect the light-sensing probe for automatic brightness adjustment. |
| Power supply interface | ||
| interface | Quantity | Description |
| Power connector | 1 | AC-100-240V-50/60HZ AC power supply interface |
| Electrical parameters | Input Voltage | AC-100-240V-50/60HZ |
| Power Rating | 36W | |
| Operating Environment | Operating temperature | -20℃ - 70℃ |
| Operating humidity | 10%RH-80%RH non-condensing | |
| physical dimensions | size: 486x365x88.9mm (L×W×H) | |
| Net weight | 4.75Kg | |
| Packaging Information | box size | 565×445×185mm |
| Accessories | 1×DVI cable, 1×power cable, 1×DP cable, 1×HDMI cable, 1×USB2.0 print cable, 1×qualification certificate | |
