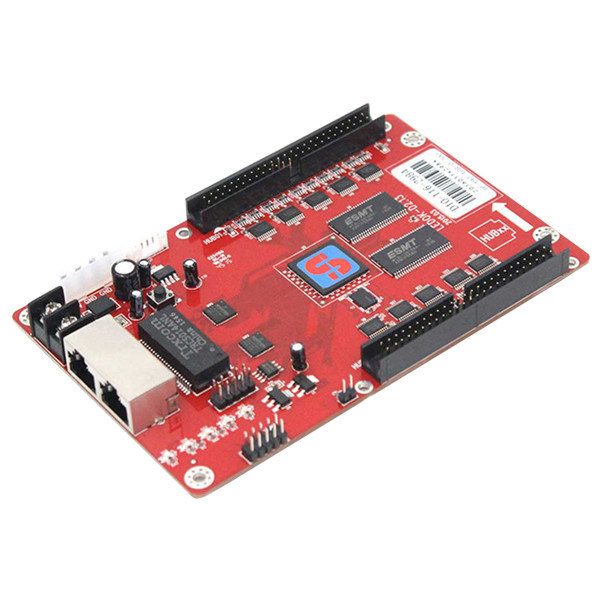

【D10 Series Receive Card】Smart Led Display Controller Card No DIP Switch 4096 Gray Scale Sync Display D10

LED Receiving Card Intelligent connection Multi-screen synchronization and combination Universal receiving card D10

Feature:

D10 is receiving card, should work with sending card K-series, it has following traits:

1. Video hardware decoding, smoothly video display with good view;
2. Supports 12 Bit (4096 gray scale )gray scale for red, green and blue color;
3. One card can support maximum pixels 320x256;
4. Synchronized multiple led screen to show same program, one sending card can control multiple led screen, to realize sync-display for each led screen;
5. Support to read back the setting files, like hcp4 and cas files;
6. Smart connection, means can exchange the receiving cards without doing cascading settings again, card will intelligent recognize its display zone;
7. K-series cards supports scan types within 16 bit including 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16 scan types;
8. Support PWM driver IC, like MBI 5041 to make better view;
9. One sending card can connect one hub so that could save one receiving card;
10. Fixed dimension, easy to install and exchange;
11. Surpass traditional concept, no DIP switch design, all through computer to do settings;
12. Supports to updating receiving card firmware online without removing it from led display.

Interfaces pin out:

D10 has 50pin interface for full color, has 8 groups of full color data, pin out as following:

• Technical parameters
