Focus on providing solutions for outdoor digital media and LED industrial applications
| Place of Origin: | China |
|---|---|
| Brand Name: | SYSOLUTON |
| Certification: | FCC，CE certification |
| Model Number: | M80 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Standard package list:USB debug cable、Wi-Fi antenna (2) 、12V3A power port with line (5.5mm×2.5mm standard port); Optional list:4G modem 、4G antenna |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Dimension(cm): | 19.3X13.9X3.3 | Working Temperature Range(℃）: | - 20～ +70 |
|---|---|---|---|
| Power Input（V）: | 12 | Rated Power（W）: | 15 |
| Working Humidity Range（RH）: | 10%～90% No Solidification | Net Weight（KG）: | 1 |

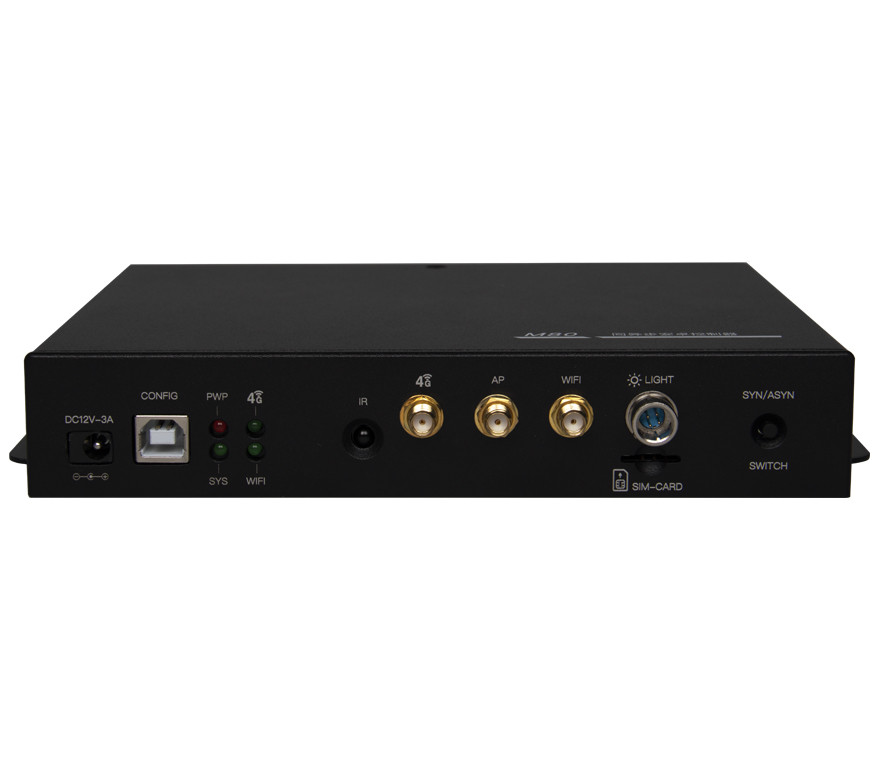

M80 internet player adopts 8 core high performance CPU, also integrated with sending card together, which features powerful video process ability and reasonable costs.Small size, low power consumption, fits for wide temperature range and easy to install, M80 has 4 Ethernet output ports, maximum 2.3 million pixels, widest reach to 3,840pixels, highest reach to 2,160 pixels.
It can be widely used in commercial locations including fixed ads sign, smart led lamp post sign, door head sign, LED vehicle signs, chain stores ads sign, LED electronic whiteboard, led mirror sign, led glass sign, LED advertisement sign and etc.
Functions
Product Parameters
| Descriptions | |
| Mode | M80 |
| Resolutions | Maximum 2.3 million, widest 3,840 and highest 2,160 pixels |
| Communicate type | 100MB LAN,WiFi( AP/STATION),4G modem |
| RAM | 2G DDR3 high speed RAM |
| ROM | 8G EMMC high speed ROM |
| CPU | 8 core |
| Operation system | Android 7.1 |
| Receiver | D80,D9 series receiver |
| Software | LedOK Express,AIPS (www.ledaips.com) |
Please click the link for more details: M80 Datesheet-V1.0.pdf
