S60S multi-screen video splicing and processing all-in-one is a professional-grade LED display control device; it has powerful video signal receiving, splicing and processing capabilities, and can drive a maximum of 6.5 million pixel LED screen, supporting 3 HDMI and 1 DVI digital signal, seamless switching between multiple signals; any splicing, supporting up to 8 screens at the same time.
With 12 Gigabit network outputs, the S60S offers a wide range of features for flexible screen control and high quality image display, making it perfect for all sizes of LED displays.
S60S's powerful video processing and distribution capabilities can be used in a wide range of applications such as high-end rental and small pitch displays for stages, conferences, events, exhibitions, etc.
1. Full digital HD interface, DVI x 1, HDMI x 3.
2. Support for 12 Gigabit network outputs.
3. Maximum banding of 7.8 megapixels, each network port can do independent banding display, output single network port up to 3840 pixels wide and up to 3840 pixels high.
4. Support for input resolutions of 3840 x 2160 @ 60Hz and a maximum input resolution of 7680 x 1080 @ 60Hz with any customisable resolution.
5. Support for arbitrary switching of video sources and arbitrary scaling.
6. 8-screen display with arbitrary overlay, roaming and zooming; instantaneous image switching to ensure no black screen display.
7. Arbitrary cropping of video sources, with local enlargement.
8. Free adjustment of the position and size of the screen window.
9. Support for engineering time locks.
| Load capacity | Single Network Port | 650,000 pixel point |
| Complete machines | 7.8 million pixel point | |
| Maximum width and height | Single Network Port | Width: 3840 pixel points |
| Height: 3840 pixel points | ||
| Complete machines | Width: 16384 pixel points | |
| Height: 16384 pixel points |
Front panel
|
Front panel description |
||
|
NO. |
Key |
Instruction |
|
1 |
LCD |
It is used to display the current status of the device and set menu item parameters |
|
2 |
knob |
In the main interface, press the knob to enter the menu operation interface In the menu operation interface, rotate the knob to select the menu, press the knob to select the current menu or enter the submenu. After selecting the menu with parameters, turn the knob to adjust the parameters, and then press the knob to confirm the application |
|
3 |
Function keys |
MENU ESC BLACK LOCK |
|
4 |
Number keys |
Call scene mode |

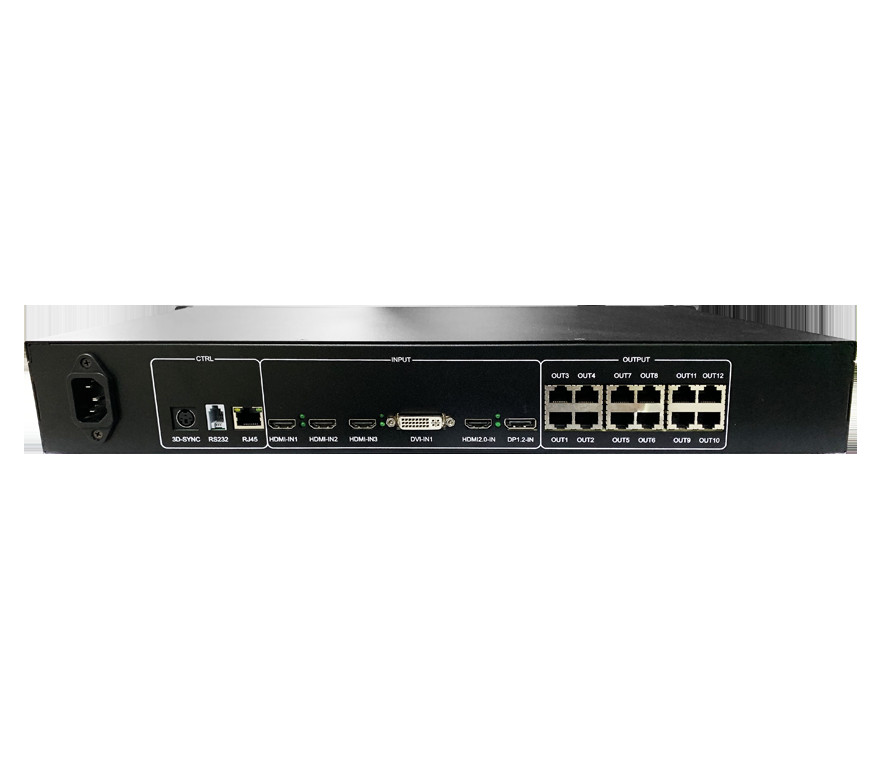

Rear panel
| Input interface | ||
| Interface | quantity | statement |
| HDMI | 3 | EIA/CEA-861 standard, HDMI1.4 standard, support 1920x1080@60Hz , |
| DVI | 1 | Only support VESA standard DVI-D digital signal, support EDID customization |
| HDMI2.0 | 3 | Comply with HDMI 2.0 standard and support 4096 × 2160@60Hz |
| DPI1.2 | 1 | Comply with DP1.2 standard and support 4096 × 2160@60Hz |
| Output interface | ||
| Interface | quantity | statement |
| Gigabit network interface | 12 |
Interface type:RJ45 Transmission speed:1000BaseTX Support receiving card: D70/D90 series receiving card and multi-function card |
| Control interface | ||
| Interface | quantity | statement |
| LAN | 1 | 100M network debugging interface, supporting LAN debugging |
| RS232 | 1 | Serial interface, reserved interface |
| 3D-SYNC | 1 | Reserved interface, not supported temporarily |
| The power supply interface | ||
| Interface | quantity | statement |
| Power interface | 1 | AC power input interface 100V~240V |
| Electrical parameters | Input voltage | AC-100-240V-50/60HZ |
| Power rating | 36W | |
| Working environment | Operating temperature | -20°C-~+70°C |
| Working humidity | 10%RH-80%RH no solidification | |
| Dimensions | Enclosure size: 472mmX290mmX64mm (LxWxH) | |
| Net weight | 2.8Kg±5g | |
1. High voltage hazard: This product operates at AC -100V to 240V.
2. It is forbidden to immerse liquids, metal fragments and other conductive objects into the interior of the equipment to avoid safety accidents.
3. Please use the appliance in a dry, clean environment.
