Focus on providing solutions for outdoor digital media and LED industrial applications
| Place of Origin: | China |
|---|---|
| Brand Name: | Sysolution |
| Certification: | FCC，CE certification |
| Model Number: | SY80 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 2-3 working days |
| Payment Terms: | T/T,PayPal |
| Supply Ability: | 30 units per month |
| Load Capacity Of Single Network Port: | 5.2 Million Pixels | Maximum Width Of Complete Machines: | 7680 |
|---|---|---|---|
| Maximum Number Of Complete Machine: | 3840 | Input Ports: | HDMI 2.0 ×1, DP 1.2 ×1 (choose One); HDMI 1.4 ×1 |
| Output: | 8 Ethernet Ports | ||
| Highlight: | led sign controller,led panel controller |
||

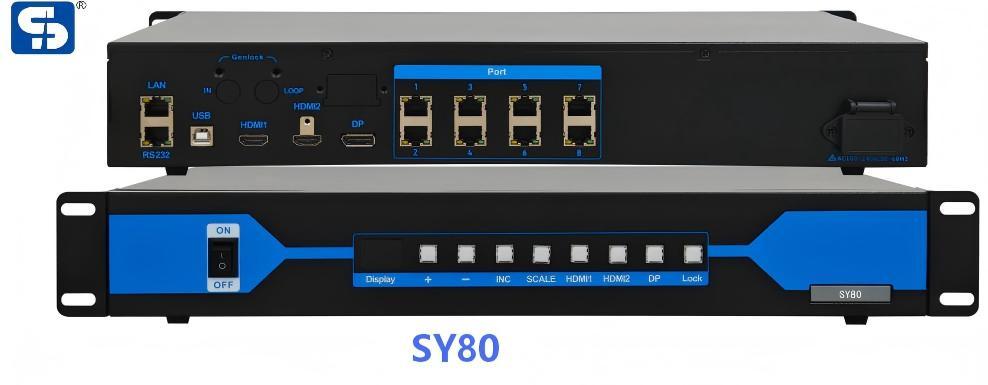

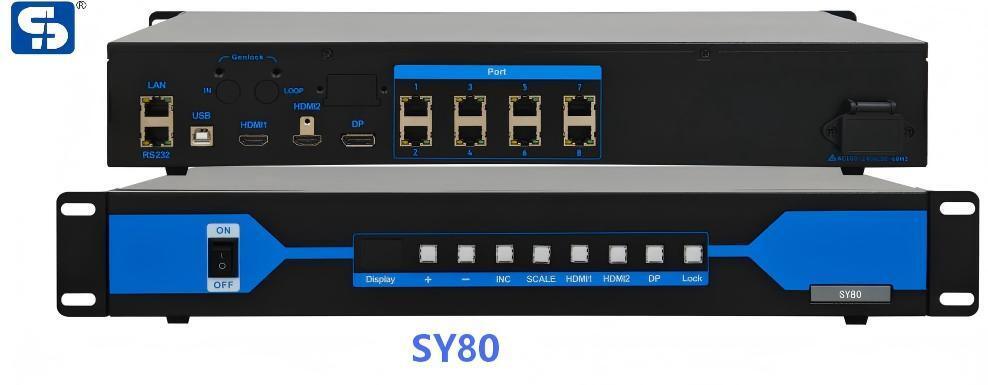

The SY80 is an all-in-one video processor from Xixun, specifically designed for entertainment applications with 8 network ports. It features powerful signal processing capabilities, supports 4K ultra-high-definition display output, and supports multiple control methods; as a pure hardware device, it offers simple operation and comprehensive functionality, supporting up to 5.2 million pixels; it boasts exceptional stability and outstanding cost-performance ratio.
| Electrical parameters | input voltage | DC 5V |
| rated power | 25W | |
| working condition | working temperature | -20℃ - 60℃ |
| Work environment humidity | 5% RH–95% RH – No coagulation | |
| Chassis specifications | 1U | |
| Physical dimension | Chassis dimension:482mm×250mm×66.7mm | |
| Net Weight | 3.1Kg | |
| Package | Box size | 515 X 130 X 355mm |
| accessories | 1×USB cable ,1×HDMI cable,1×DP cable,1×certificate,1×power line | |
| Single-unit gross weight | 4.2 kg – Note: Includes all wire cables and packaging. | |
| Repackaging method |
3 units in one box |
|
Notes
Do not allow conductive objects such as liquids and metal fragments to enter the interior of the equipment to avoid safety accidents.
Please use the equipment in a dry and clean environment.
