Focus on providing solutions for outdoor digital media and LED industrial applications
| Place of Origin: | China |
|---|---|
| Brand Name: | Sysolution |
| Certification: | FCC,CE |
| Model Number: | L16 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Carton box |
| Delivery Time: | 3-4 days |
| Payment Terms: | T/T, PayPal |
| Supply Ability: | 30 units per one week |
| Port: | Ethernet | Size: | 126.5mm*70mm/±0.5mm，Plate Thickness 1.6mm±10% |
|---|---|---|---|
| Working Environment: | Temperature: 0°C To 80°C, Recommended 5°C To 35°C, Humidity: 10% To 90%, No Condensation | Memory: | 2G/ |
| Built-in Memory: | EMMC 16G | High-definition: | Support For 3840 × 2160 Decoding |
Functions:

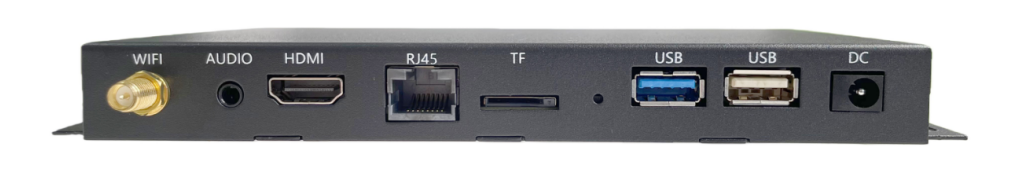

1. High integration. Integrating functions such as USB/LVDS/Gigabit Ethernet/WIFI/BT/eDP/SD card expansion/microphone, simplifying the overall design and making it more aesthetically pleasing.
2. High definition. Supports video decoding of 1080P/H.265 (4K2K) and various LVDS/eDP signal LCD displays.
3. Built-in power amplifier. Supports dual-channel 8R/2W power amplifier.
4. Rich interfaces. Supports USB (1 USB3.0 port)/serial port/GPIO/ADC interface expansion, capable of meeting mainstream peripherals on the market.
5. Fully functional. Supports landscape and portrait playback, video split-screen, scrolling subtitles, scheduled on/off, USB data import, and other functions.
6. Convenient management: User-friendly playlist creation software facilitates the management and control of advertisement playback. Playback logs make it easy to understand the status of playback.
Product Parameters
| Main hardware parameters | |
| NPU | NPU supports 0.8T |
| memory | Standard configuration: 2GB LPDDR4X/LPDDR4, with memory options available |
| built-in storage | EMMC16G/32G (optional) label 16G |
| operating system | Android11.0 |
| playback mode | Supports various playback modes such as looping, timed playback, and interruptive playback |
| network support | Gigabit Ethernet, supporting WiFi/BT and wireless peripheral expansion |
| USB2.0 interface | 5 USB HOSTs (4 built-in pin-based USBs) |
| USB 3.0 | 1 standard USB 3.0 interface |
| Ethernet | 1 unit, 10M/1000M adaptive Ethernet |
| HDMI | UP to 3840*2160 |
| EDP output | Up to 1920*1200 |
| LVDS | Up to 1920*1080 |
| MI PI | Up to 2560*1440 |
| audio output | Left and right channel output, 8R/2W speakers |
| RTC (Real-Time Clock) | support |
| Hardware watchdog | support |
| scheduled power on | support |
| serial port | 3 channels for TTL, 1 channel for Debug, and 1 channel for RS232 |
| System Update | Support TF card/computer updates |
| Other functions | TF/USB automatically imports screen parameters |
Working Parameters
| Item | Minimum | Typical | Maximum | |
| Power voltage | voltage | -- | 12 | -- |
| ripple | -- | -- | 50mV | |
| Power supply current (with power on and no other peripherals connected) | operating current | -- | 250mA | 300mA |
| standby current | -- | 10uA | 5mA | |
| USB power supply current | -- | -- | 500mA | |
| LCD screen power supply current | -- | -- | 1A | |
| Environment | relative humidity | -- | -- | 80% |
| temperature | -20℃ |
-- |
70℃ | |
