Product Introduction
The Sysolution Y89 is a next-generation synchronous/asynchronous master control card designed for LED full-color displays, integrating playback and transmission functions. It comes with professional PC software LedOKExpress and mobile app LedOK Lite, while supporting cloud publishing via LedokCloud to provide users with comprehensive multi-mode device management. Powered by an RK3568 quad-core processor clocked at 2.0GHz, the device features a built-in 1 TOPS NPU unit capable of handling AI and deep learning tasks, balancing performance with scalability. Customized on Android 11, it supports third-party app installation for highly flexible operation. This configuration delivers smooth playback of images, 4K video hard decoding, Flash animations, and text content.
Suitable for fixed screens, high-performance configurations, vehicle displays, light pole screens, retail store screens, AI advertising machines, and ultra-long/ultra-high irregular-shaped screens.

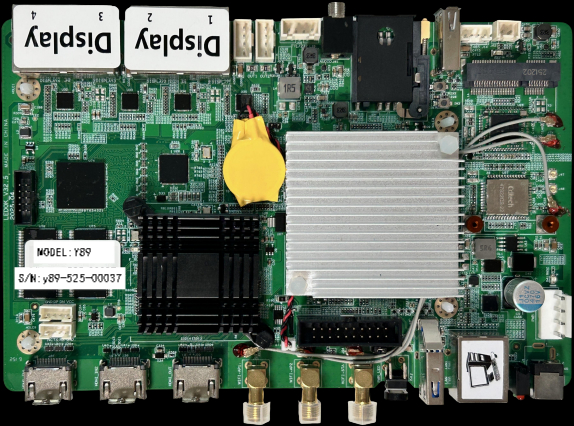

Product picture
Functional
1. Featuring robust processing and storage capabilities, the device is powered by an RK3568 quad-core A55 processor with a clock speed of up to 2.0GHz. It comes with a standard 4GB RAM + 32GB ROM configuration, with an optional 8GB RAM + 64GB ROM option. The built-in Neural Processing Unit (NPU) delivers up to 1 TOPS performance, making it capable of handling AI deep learning projects.
2. The desktop UI system customized for Android11 allows third-party APPs to be added.
3. Supports multiple video inputs and outputs, including one asynchronous Android input, two synchronous HDMI 1.4 inputs, and one HDMI 1.4 output. Input resolution ranges from 640*480@60Hz to 4K@30Hz, and supports custom resolution.
4. Supports up to 4 Gigabit network ports with a maximum payload of 260W pixels.
5. Supports HDMI loop-level cascading splicing and automatic splicing.
6. Supports dual-mode Wi-Fi 5 (STA) and Wi-Fi 6 (AP) wireless connectivity; multi-platform screen mirroring compatible with Windows, macOS, iOS, and Android; features intelligent routing to create shared hotspots via Wi-Fi, 4G, or wired networks.
7. Features a built-in Mini-PCIe port with 4G communication support (compatible with Quectel modules) and optional upgrade to 5G modules.
8. Features 1 USB3.0 and 1 USB2.0 ports for high-speed data transfer and extensive device expansion, compatible with USB drives and keyboards.Mouse, camera, etc.
9. Powerful IoT device connectivity and expansion capabilities, equipped with industrial-grade communication interfaces such as RS485, RS232, and TTL, enabling easy connection to various Internet of things sensors and industrial equipment.
10. Supports dual remote power-off interfaces to control devices such as LED displays.
11. Support brightness sensor interface and onboard temperature probe to realize automatic brightness adjustment and device ambient temperature detection.
12. Supports IP network remote broadcasting (MP3/TTS), two-way video intercom, emergency calls, and one-touch alarm, providing complete audio communication Emergency solutions.
13. APP-based intelligent broadcasting control, enabling remote program production, distribution, and management through the LedOKlite APP. It supports both local program control and rapid production. Supports USB flash drive playback, plug-and-play, and file copying.
14. Supporting software: LedOKExpress, LedOK lite.

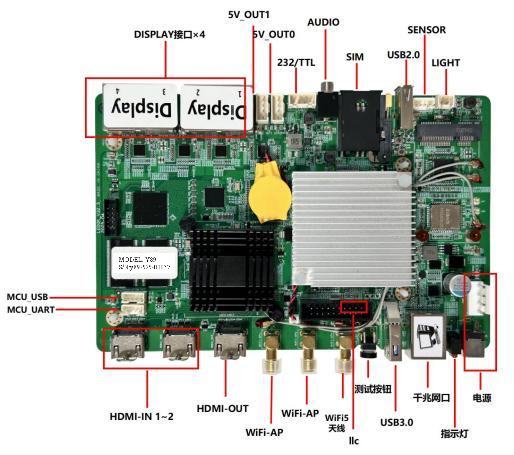

Interface Annotation
| No. | Name | Explain |
|
1 |
source |
●4-pin connector: 3.96mm spacing, 12V 3A. ●DC socket: 2.0mm, 12V 3A. |
|
2 |
pilot lamp |
●CPU indicator: blinking normally.
● Network light: The network is flashing normally. |
|
3 |
Gigabit network port |
● Connect to a wired network.
● Connect to the host computer software. |
|
4 |
USB3.0 |
●USB Debug.
●Supports USB devices such as mice, keyboards, and USB drives. |
|
5 |
Test Button |
● Button: reserved function.
● Support one-click asynchronous switching |
| 6 | llc | ● External temperature and humidity sensor |
| 7 | Wi-Fi 5 Antenna | ●WI FI STA antenna. |
| 8 | Wi Fi-AP 1 | ●Specifications: 2T2RWIF I6 antenna interface. |
| 9 | Wi Fi-AP 1 | ●Specifications: 2T2RWIF I6 antenna interface. |
|
10 |
HDMI-OUT |
●Supports up to 4K@30Hz. ●HDMI1.4 monitoring. |
|
11 |
HDMI-IN 1~2 |
2*HDMI1.4. ●Supports up to 4K@30Hz. ●Minimum support: 640x480 at 60Hz. ● Compatible with HDMI 1.4b and DVI 1.0 standards.
●Supports custom resolution.
Width range: 640 to 4096 Height range: 480 to 4096 |
|
12 |
||
| 13 | MCU_UART | ●MCU Debug Serial Interface |
| 14 | MCU_USB | ●MCU reserved USB port |
| 15 | LIGHT | ● Brightness sensor interface (analog) |
| 16 | SENSOR | ●485 sensor interface (light, temperature and humidity) |
| 16 | USB2.0 | ●Supports USB devices such as mice, keyboards, and USB drives |
| 17 | SIM | ●4G/5G SIM card slot |
| 18 | AUDIO | ● 3.5mm analog audio output. |
|
19 |
232/TTL |
●RS232 interface. ●TTL interface. |
| 20 | 5V_OUT0 | ●5V/500mA output. Remote power-off 0 |
| 21 | 5V_OUT1 | ●5V/500mA output. Remote power-off 1 |
|
22 |
DISPLAY interface ×4 |
4 RJ45 ports ● Maximum load capacity per port: 65W at 8-bit input source.
● Supports up to 2.6 megapixels. |
Product Parameter
| Main hardware specifications | |
| CPU | Renesas Microelectronics RK35684-core 2.0GHz Cortex-A55 |
| GPU | GPU Mail-G522EE |
| internal storage | 4G |
| Built-in memory | EMMC32G |
| Load pixels |
Four Ethernet ports, 2.6 megapixels, maximum width 4096, maximum height 4096 Note: The asynchronous mode supports a maximum width of 4096 and a maximum height of 2160. |
| operating system | Android 11 |
| Playback Mode | Supports loop, timer, and insert playback modes |
| Network Support | 4G, Ethernet, Wi-Fi support, wireless peripheral expansion |
| Video Play | Supports MP4 (H.265/H.264, DIVX, XVID) formats |
| USB joggle | 1 USB 2.0 HOST, 1 USB3.0 OTG |
| gorge line | IIC / TTL / 485/232 |
| WI FI6 | Support AP 2.4G/5G band |
| WI FI5, BT | Wi Fi 11ac + BT5.0 |
| GPS | External GPS (optional) |
| 4G/5G | Built-in 4G/5G module communication (optional) |
| Ethernet | 1, 10M/100M/1000M adaptive Ethernet |
| HDMI output | support |
| Audio output | 3.5mm audio port |
| Configure software | LedOK Express |
Operational parameter
| operational parameter | |
| input voltage (V) | DC12V |
| Operating temperature (°C) | -30 ~ +75℃ |
| Working humidity (%) | 0% to 80% no condensation |
| Storage temperature (°C) | -40~80℃ Recommended 5~35℃ |
| size (mm) | 185 (long) x120 (wide) |
Dimensional drawing
unit :mm
Accessories
| Optional Accessories | Accessories |
| Light sensor RL2 | Automatically adjust screen brightness based on ambient light |
| Temperature sensor RTH2 | Measures ambient temperature and humidity, with real-time display on screen and platform monitoring |
| Five-element environmental sensor R68 | Temperature, humidity, illuminance, PM2.5, PM10, noise, wind speed, wind direction |
|
Power meter sensor
RM1257 |
The real-time platform tracks daily electricity consumption |
| 30W speaker RLB1*2 | Real-time IP emergency broadcast system requires RS56S multi-function card with power amplifier for speaker operation. |
Cautions
1. The product operates at 12V input voltage. When using the M80H series power supply, ensure the power quality meets the specified standards.
2. When connecting or disconnecting signal or control lines, ensure all power cords are disconnected first.
3. If you need to add or remove hardware from this product, make sure all signal and power lines are disconnected first.
4. Before performing any hardware operations, turn off the power of the control card and release static electricity by touching the ground surface.
5. Please use in a clean, dry and ventilated environment. Do not use this product in high temperature or humidity.
6. This product is an electronic product, please keep away from fire, water and inflammable and explosive dangerous goods.
7. This product contains high-voltage components. Do not open the chassis or repair the device yourself.
8. If you find any abnormal situation such as smoke or odor, please immediately turn off the power switch and contact the distributor.
