Focus on providing solutions for outdoor digital media and LED industrial applications
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SYSOLUTION |
| Certification: | CE, FCC, ROSH |
| Model Number: | Y12 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiate |
| Packaging Details: | Carton Box |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 per day |
| Dimensions: | 178mmx129mm | Refresh Rate: | 3840Hz |
|---|---|---|---|
| Weight: | 250g | Operating System: | Android9.0 |
| Storage: | 1GB+8GB | Connectivity: | Wi-Fi, 4G,ETH,USB |
| Warranty: | 1 Year | Working Temperature: | -40℃~+90℃ |
| HUB Port: | 12 HUB75E |
Functional Features
12 Hub75 outputs for direct output, ensuring stable image transmission;
The onboard RS485 interface facilitates front-end devices to adjust the brightness of the rear display screen, control the led screen, and perform command operations such as power on/off. An external eight element environmental sensor R68 is connected to display environmental information, eliminating the need for secondary development;
Support external GPS positioning and timing modules to ensure synchronized playback of multiple screens;
Supports communication methods: wired network, WIFI, and 4G, making it easy to deploy in the on-site environment. The 4G module is optional, and provide specific 4g modem for different countries;
Support secondary development and remote cluster control on cloud platforms, such as centralized program release, setting timed power on/off, remote power off, volume, brightness, etc;
Powerful processing performance, 4-core processor with a main frequency of 1.5GHz, supporting 1080P video hard decoding, 1GB of running memory, 8GB of internal storage space, and 4GB available to users;
The user terminal connects to the built-in WiFi hotspot of Y19, with a default SSID of "SN number" and a default password of "Sys12345678";
Supports GPS timing/synchronization, and NTP precise automatic timing;
Y19 can automatically adjust the brightness of the display screen and requires a matching brightness sensor;
Support playing programs according to the program schedule;
Supporting software: LEDCLOUD VIP Platform, LedOK Express, mobile app: LedOK Lite

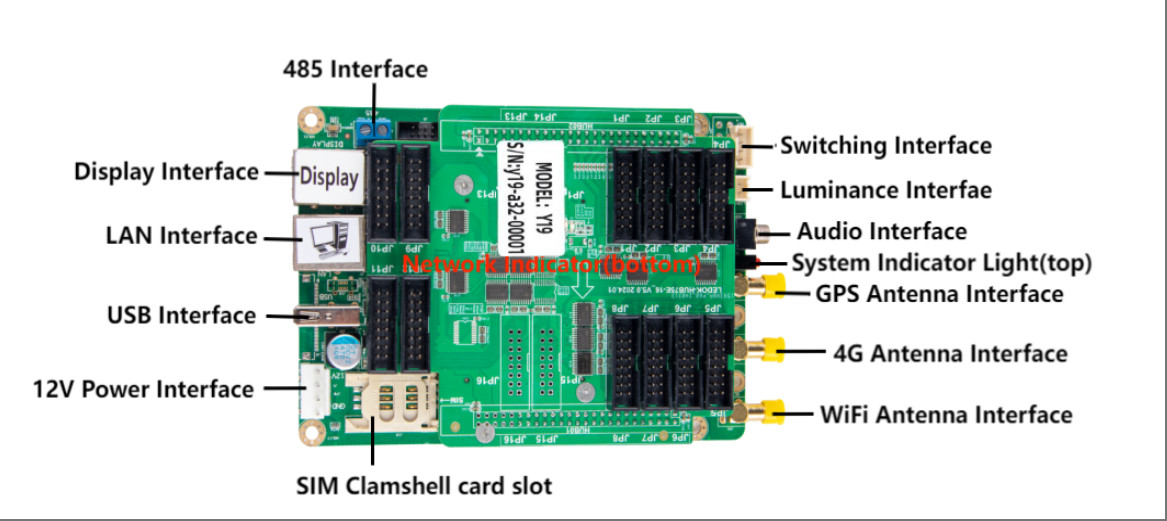

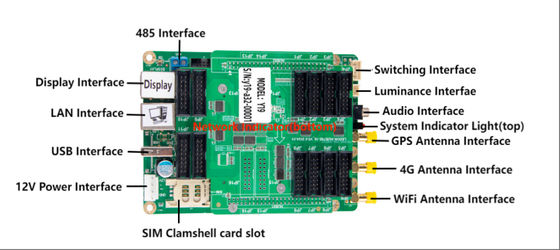

Product Parameters
Working Conditions
It is recommended that the control card be powered by a separate (12V/3A or higher) power supply.
High operating temperatures can cause a dramatic drop in power supply efficiency. If the control card and module share the same power supply, please ensure that the control card has a stable voltage and a reasonable actual current supply.
Unit: mm
