Focus on providing solutions for outdoor digital media and LED industrial applications
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SYSOLUTION |
| Certification: | CE, FCC, ROSH |
| Model Number: | Y08 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiate |
| Packaging Details: | Carton Box |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 pcs per 1 month |
| Connectivity: | Ethernet, WIFI | Warranty: | 1 Year |
|---|---|---|---|
| Dimensions: | 178mmx129mm | Display Technology: | LED |
| Application: | Vehicle Signage | Installation Method: | Magnetic Or Bracket Mounting |
| Operating Voltage: | 12V | Gps: | GPS Location |
| Auto Brightness: | Brightness Sensor | Storage: | 1GB+8GB |
| Operation System: | Android 9.0 | Cloud Platform: | Vehhub Platform |
Functional Features:
Product Parameters
|
Product features |
Description | |

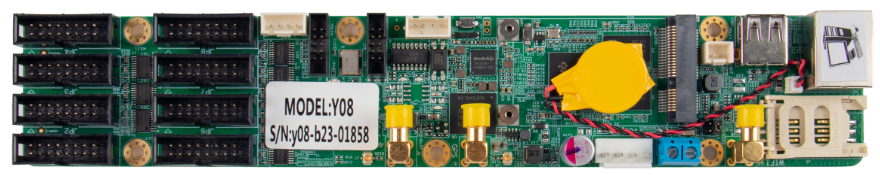

| Model |
Main: Y08 (no 4G), Y08-CH (China 4G full network access), Y08-G (global access, recommended abroad) Y08-NA,Y08-EU,Y08-LA |
|
| Pixel |
Y08: 170,000 dots, limiting resolution 1024(W)or 1024(H), custom resolution support |
|
| Communication | Network port, WiFi, USB stick, optional 4G module | |
| System memory | 8GB Emmc+1GB LPDDR3 | |
| Operating systems | Android 9 | |
| WiFi | IEEE 802.11b/g/n 2.4G | |
| GPS | GNSS GPS/Beidou/Glonass | |
| Other interface support |
1 stereo audio output. (Requires extension of an adapter card, optional)
|
|
| Configurat ion | LedOK Express | |
| Supported Bands | ||
| Model | 3G/4G bands (optional) | Certification |
| Y08-CH |
-China(China/India) FDD-LTE:B1/3/5/8 TDD-LTE:B38/39/40/41 TDSCDMA:B34/39 WCDMA:B1/8 CDMA 1X/EVDO:BC0 GSM:B3/5/8 |
Mandatory certification:SRRC/ NAL/ CCC Other:WHQL |
| Y08-NA |
-North America(North America) FDD-LTE:B2/4/5/7/12/13/17 WCDMA: B2/4/5 |
Carrier certification:AT&T/ T-Mobile/Rogers/ TelusVerizon/AT&T (FirstNet)/T-Mobile/U.S. Cellular/Rogers/ Telus Mandatory/conformance certification::FCC/ IC/ PTCRB Other:WHQL |
| Y08-EU |
-Eurasia(EMEA/Korea/Thailand/India and other Asian countries) FDD-LTE:B1/3/5/7/8/20 TDD-LTE:B38/40/41 WCDMA:B1/5/8 GSM:B3/5/8 |
Carrier certification:Vodafone/Deutsche Telekom/SKT/ Telefónica Mandatory/conformance certification:GCF/ CE/ KC/ NCC/RCM/ FAC/ NBTC/ICASA Other:WHQL |
| Y08-LA |
-Latin America (Latin America /Australia / New Zealand) FDD-LTE:B1/3/5/7/8/28 TDD-LTE:B40 WCDMA:B1/2/5/8 GSM:B2/3/5/8 |
Mandatory/conformance certification:GCF/ FCC/ Anatel/ NCC/RCM Other:WHQL |
| Y08-G |
-Global(Global) FDD-LTE:B1/2/3/4/5/7/8/12/13/ 18/19/20/25/26/28 TDD-LTE:B38/39/40/41 WCDMA:B1/2/4/5/8/6/19 GSM:Quad-band |
Carrier certification:Deutsche Telekom/ Verizon/ AT&T/ Sprint/U.S. Cellular/ Telus Mandatory/conformance certification:GCF/ CE/ FCC/ PTCRB/ IC/ Anatel/IFETEL/ SRRC/ NAL/ CCC/ KC/ NCC/ JATE/ TELEC/ RCM/ NBTC/ IMDA/ICASA Other:WHQL |
| Y09-J |
-Japan(Japan) FDD-LTE:B1/3/8/18/19/26 TDD-LTE:B41 WCDMA:B1/6/8/19 |
Carrier certification:NTT DOCOMO/SoftBank/ KDDI Mandatory/conformance certification:JATE/ TELEC Other:WHQL |
| Type | Description | |
|
Input interface |
Power connector | +12Vpower supply |
| LAN port | Gigabit network input | |
| USB port | USB2.0 interface, support for U disk programme import and playback, Debug interface | |
| Brightness line interface | Optional RL2 brightness sensor | |
| External testing | SOS,EME,BUSY,SPA,ACC | |
|
Output Connector |
485 interface | Baud rate 9600 |
| TTL/232 interface | Baud rate 9600 (two choices default TTL) | |
| GPS interface | GNSS GPS/Beidou/Glonass | |
| WIFI interface | IEEE 802.11b/g/n 2.4G | |
| 4G interface | 4GG module interface | |
| Audio output connector | Stereo audio output External operation indicator, external reset (optional and to be specified on order) | |
| HUB75 interface | 8 x HUB75 signal outputs | |
| Power indicator | Red light always on | Normal |
| FPGA Indicator | Red slow flash | Normal operation |
| CPU indicator | Red slow flash | Normal operation |
Working Conditions
| Working parameters | |
| Operating voltage (V) | 12V |
| Operating current (A) | 0.9A Max:3A |
| Maximum operating power consumption (W) | 15 |
| Operating temperature (°C) | －40°C～＋95°C |
| Storage temperature (°C) | -40℃ ~75℃,recommended 5℃ ~35℃ |
| Humidity of the working environment (%) | 10% ~ 90%,no condensation |
power supply.
control card and module share the same power supply, please ensure that the control card
has a stable voltage and a reasonable actual current supply.
Accessories
| Standard accessories | Size/quantity | ||
| WiFi Patch Antenna | 1.5m*1 (80cm patch optional) | ||
| 4G suction cup antenna (with optional 4G module) | 1.5m*1 (80cm patch optional) | ||
| Optional accessories | Accessory functions | ||
| Humidity line RH1 | For detecting the current humidity of the external environment | ||
| Luminance line RL2 | For sensing the brightness of the current environment | ||
| 8 in 1 Environmental Sensor R68 / 6 in 1 | Temperature, humidity, illuminance, PM2.5, PM10, noise, wind speed, wind direction | ||
| Power statistics RM1275 | View daily electricity consumption in real time | ||
| G10 positioning module | GPS positioning module | ||
| R16 | Amplifier Module | ||
|
Matching accessories available (optional for the above, additional models to be ordered on request) |
|||
| Packaging information | Dimensions (L x W) | 255mm x150mm | |
| List | WiFi Patch Antenna 1.5m | ||
| Dimensions (L x W) | 240mm x 43mm | ||
| Net weight | 110g | ||
