Sysolution LED Independent Controller Y50

Product Introduction:

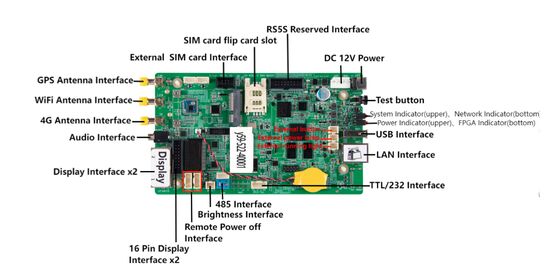

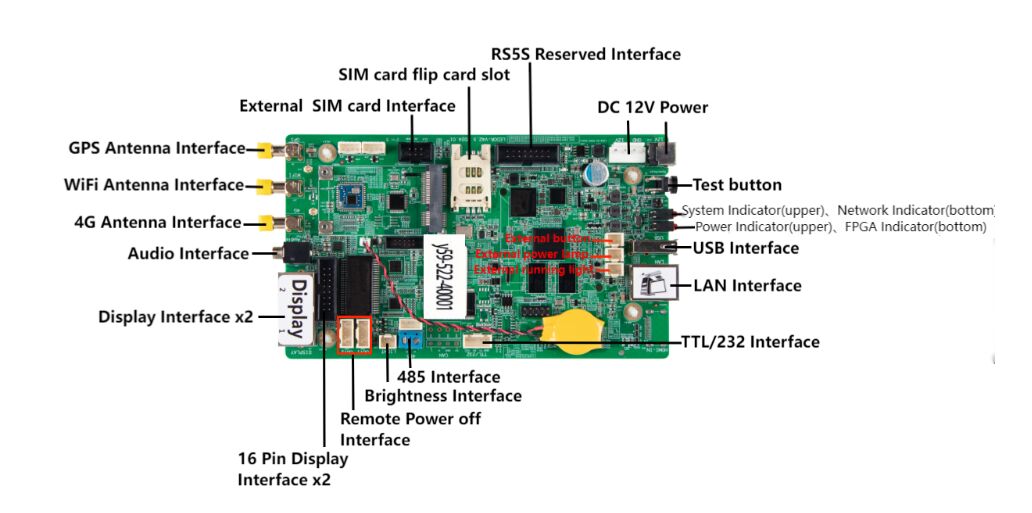

Sysolution Y50 is an LED display conroller developed by Sysolution. It supports 2x Ethernet outputs, 1x USB port, 1x audio output, 1x RS485, 1xRS232, 1x TTL serial port. A single Y5a supports input resolutions up to 1920x1080@60Hz. Y5a communicates with PC via LAN port.

Clients can release programs and control through PC, mobile phone, Pad and other user terminals. Y50 supports wireless transmission, can avoid the trouble of wiring, and configure;supports remotely control via cloud platform, and easily realize the cluster management ;

Hardware and software design fully consider user deployment, operation and maintenance scenarios, making deployment easier, operation more stable and maintenance more efficient; With safe and stable function design, it can save space and reduce wiring for users.

It can be used in small load scenes such as car screen, small traffic screen, community screen, lamp pole screen, etc.

Y50 series adopts industrial grade quad core processor, integrates four cortex-a35, dual core mali-g31 GPU, quad core main frequency 1.5GHz, can withstand 90 ℃ high temperature and can operate stably, and the memory supports 1gb+8gb (compatible with 2gb+16gb) LPDDR3. The chip can support GSM, WCDMA, TD-SCDMA, EVDO, TDD-LTE, FDD-LTE and other systems. It is a highly integrated product.

Features:

1. The information release platform passes the third level Filing Certificate of information system security of the Ministry of public security, and provides copies and seals;
2. The materials of the information transmission platform have passed the approval of audio-visual program of information network communication, and copies and seals are provided
3. Have the national quality inspection stable and qualified product certificate, and provide copies and seals;
4. Two Gigabit network ports are output, and one network port is used as backup to ensure the stability of image transmission;
5. Support the external connection of eight element environmental sensor R68 through 485 interface to display environmental information without secondary development;
6. Support the external Lora synchronization module to ensure the synchronization of multi screen display;
7. Support two-way remote power-off, one control panel switch and one control street lamp switch；
8. Support optional 4G modules. The models of modules in different countries are different. Please provide the country of use for shipment. Support optional 4G modules. Different models fits for different countries. Please confirm the country before shipment；
9. Offer FCC,CE certification；
10. Lora wireless timing multi screen synchronization；
11. Onboard WiFi module for wireless communication；
12. Support AP mode and Station mode；
13. Support secondary development and remote cluster control of cloud platform；
14. Built in web server, it supports local web page production, program release and display control of PC, mobile phone, pad and other user terminals, cluster remote program release and display control, and cluster remote monitoring of screen status；
15. Powerful processing performance, 4-core processor, main frequency 1.5GHz, support 1080p video hard decoding, 1GB running memory；
16. 8GB internal storage space, 4GB available to users；
17. Support GPS timing / timing；
18. Dual ports with super load capacity, resolution 1280*720；
19. It can automatically adjust the brightness of the display screen with a brightness sensor；
20. Support to play programs according to the program list；
21. The timing switch, volume and brightness can be set centrally through the management system；
22. Support USB camera；
23. Support NTP precise automatic timing；
24. Software kit:AIPS4.0 Cloud publishing platform, PC software LedOk Express, mobile APP:LedOK Kit.
