Focus on providing solutions for outdoor digital media and LED industrial applications
| Place of Origin: | China |
|---|---|
| Brand Name: | SYSOLUTON |
| Certification: | FCC、CE |
| Model Number: | Y70 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 2-3 work days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 30 units per Month |
| Input Voltage(V): | DC5-24V | Working Temperature: | -30℃-+75℃ |
|---|---|---|---|
| Work Humidity: | 0%-80% No Condensation | Store Temperature: | -40℃ - 80℃ Recommend 5-35℃ |
| Size (MM): | 188(Length) *100.73(Wide) *33.4(Height) | Weight(G): | 1300g |
Sysolution Y70 is a highly integrated and high- performance quad-core Cortex-A17 core controller, can run up to 1.8 GHZ, with 2G memory and 16 GB EMMC high-speed flash memory. It also supports synchronous HDMI output signals. It is more suitable for commercial display fields,such as mirror screen, advertising machine, lamp pole screen and so on.
With the developing of LED display industry, need to support HDMI output monitoring in some occasions, as well as wired network, 4G, WiFi wireless transmission, remote cluster control, and need to be able to control through mobile phones.

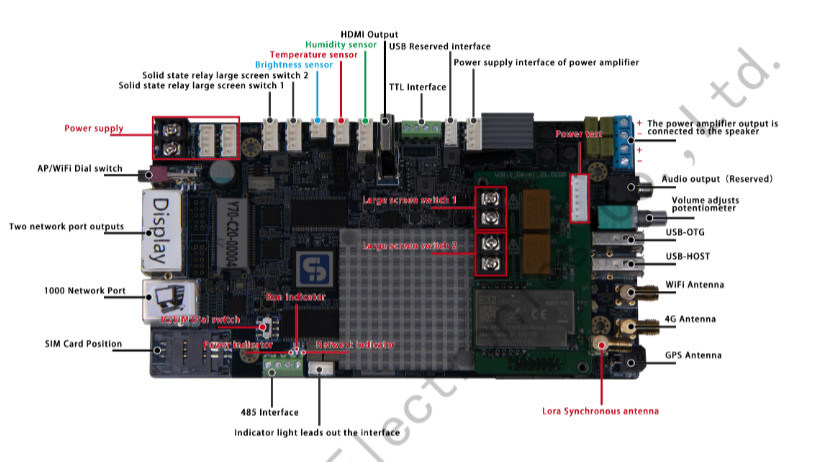

Y70 Product pictures
| Main Hardware Indicators | |
| CPU | Rui core micro RK3288 Four core 1.8GHz Cortex-A17 |
| GPU | Four core GPU Mail-T764 |
| Memory | 2G |
| Memory storage | EMMC 16G |
| Built-in ROM | 2KB EEPROM |
| Decoding resolution | 3840*2160 THE maximum support |
| On load Pix | 1280 x 720(1920 x 1080) |
| Operation System | Android 7.1 |
| Play mode | Support loop, timing, insert and other playback modes. |
| Network support | Ethernet, support WiFi/bluetooth 4.0, wireless peripheral expansion. |
| Video display | Support MP4(AVC/H.264,DIVX,XVID)Format |
| USB2.0 interface | 1个USB HOST,1个USB OTG |
| Serial port | IIC / TTL / 485 |
| GPS | External GPS(optional ) |
| WiFi,BT | Built in WiFi,BT4.0(Optional ) |
| 4G | Built-in 4G module communication ( optional) |
| Ethernet | 10M/100M/1000M Adaptive Ethernet |
| HDMI output | Support |
| audio output | 3.5mm audio port |
| Power amplifier output | 12 V power supply 4Ω BTL syndromes of Maximum power load conditions for2*33W,the smaller the power voltage,the smaller the horn |
| Configuration Software | LedOK Express |
| Work Parameter | |
| Input Voltage(V) | DC5~24V |
| Work Temperature(°C) | -30~+75℃ |
| Work Humidity(%) | 0%~80% No condensation |
| Store Temperature(℃) | -40~80℃ Recommend 5~35℃ |
| Size(MM) | 188(Length)x100.73(Wide )x33.4(Height ) |
| Weight (G) | 1300g |
Dimension: Unit: mm
Y70 Dimensional drawing of motherboard
| Optional Accessories | Fitting Function |
| Multi-function Card R56 | Remote power off 2 way + 6 ways power detection+ open/close door (require sensor RD1)+ smoke detection (require sensor RM1) |
| Multi-function Card RS5 | Remote power off 2 way + 6 ways power detection+ open/close door (require sensor)+ smoke detection (require sensor)+sync mode Lora |
| Luminance Sensor | RL2 |
| Temperature Sensor | RT1 |
| Humidity Sensor | RH1 |
| Eight elements environmental sensor | R68 |
