Sysolution IP Broadcasting Extend Function Board R56S Support State Secret Encryption Chip

Sysolution IP Broadcasting Extend Function Board R56S Support State Secret Encryption Chip
Sysolution IP Broadcasting Extend Function Board R56S Support State Secret Encryption Chip Sysolution IP Broadcasting Extend Function Board R56S Support State Secret Encryption Chip Sysolution IP Broadcasting Extend Function Board R56S Support State Secret Encryption Chip
Basic Information
Place of Origin: China
Brand Name: Sysolution
Certification: FCC，CE certification
Model Number: R56S
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: carton box
Delivery Time: 2-3 working days
Payment Terms: T/T,PayPal
Supply Ability: 30 units per week
Get Best Price Contact Now
Power Volatge Detector: 4 Line Power Voltage Detectors Power Amplifier: 2 33W Power Amplifier
Sensor: Smoke Sensor

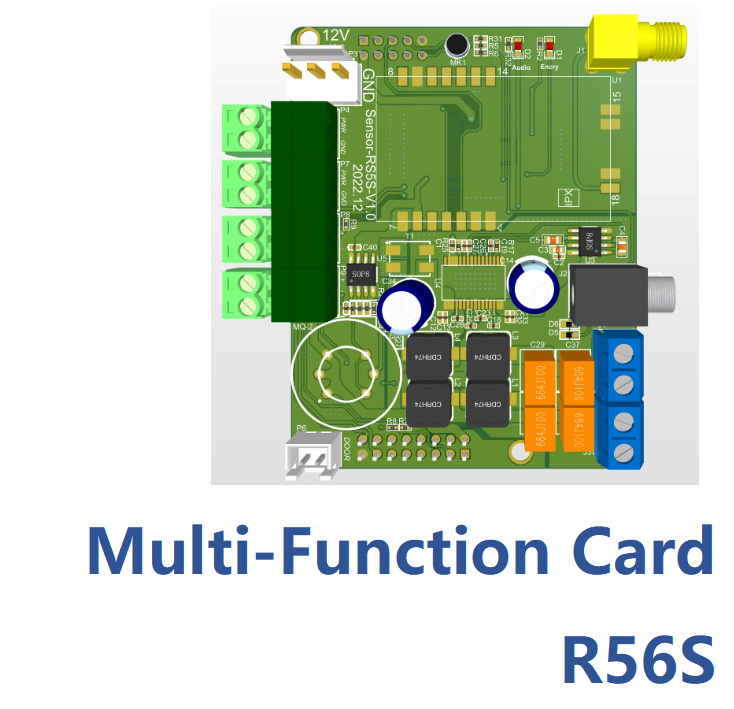

Sysolution  IP Broadcasting Extend Function Board R56S



Product Images:

                                  Sysolution IP Broadcasting Extend Function Board R56S Support State Secret Encryption Chip 0









Specifications :​

  1. Run indicator: checking the sensor working normal or not;
  2. Work together with Sysolution Y50 controller
  3. Standard 2 ways of remote power relay switch to control opening and closing of AC connectors to achieve remote hard power outage;
  4. Maximum support 4 ways of power voltage measurements.
  5. Standard smoke, door open/close sensors interfaces



Description
No. Type
①

10PIN interface: Microphone



                                            Sysolution IP Broadcasting Extend Function Board R56S Support State Secret Encryption Chip 1


②

16PIN interface: connecting smoke, ADC measure, door open/close, USB

Sysolution IP Broadcasting Extend Function Board R56S Support State Secret Encryption Chip 2
③ Power interface: 12V power supply
④ 4 ways of power voltage measurement
⑤ 3.5mm audio input
⑥ Amplifier audio output port
⑦ Door open / close sensor interface
⑧ smoke modem
⑨ microphone











Product name &Type Parameters

Multiple function board R56S


  • 1. The radius of synchronous radiation is 2KM (the distance affected by the actual use environment may have deviation);
  • Reserved interfaces for smoke, door opening and closing detection, and power voltage detection;
  • Work with the Y50 sending card, there is no need for additional holes for fixation.

Dimension:



                                            Sysolution IP Broadcasting Extend Function Board R56S Support State Secret Encryption Chip 3









Cautions:



  1. Pay attention to waterproof ;
  2. Try not to contact the chip and pin to prevent electrostatic damage.
