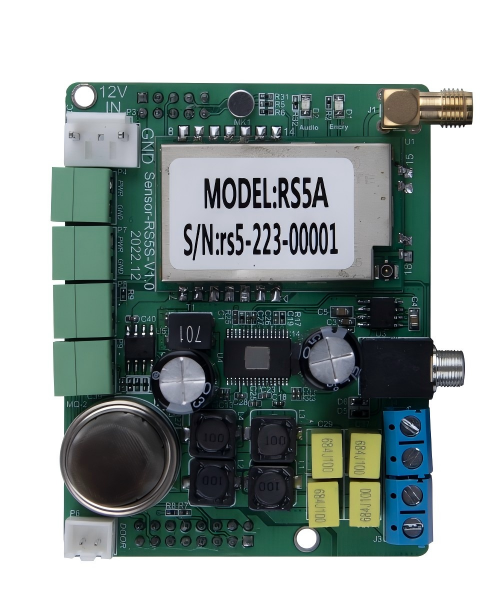

Sysolution Multi-function Extend Board RS5A

Specifications :​

Lora wireless sync module multi-function card RS5A,with the following features:

1. The running indicator is used to indicate whether the sensor is in normal working condition;
2. Wirelessly calibrate the screen and screen time, so that the playback screen switching is completely synchronized, with an error of less than 10ms (the reference value may deviate due to the actual environment, and the delay cannot be seen by the naked eye);
3. Use with Sysolution Y12D series control card;
4. Equipped with 2 remote relay switches as standard to control the opening and closing of the AC contactor to realize remote hard power off;
5. Support up to 5 channels of power supply voltage detection function;
6. Standard detection interfaces such as smoke and door opening and closing.

Cautions:

1. Pay attention to waterproof ;
2. Try not to contact the chip and pin to prevent electrostatic damage.
