Focus on providing solutions for outdoor digital media and LED industrial applications
| Place of Origin: | China |
|---|---|
| Brand Name: | Sysolution |
| Certification: | CE, FCC, ROSH |

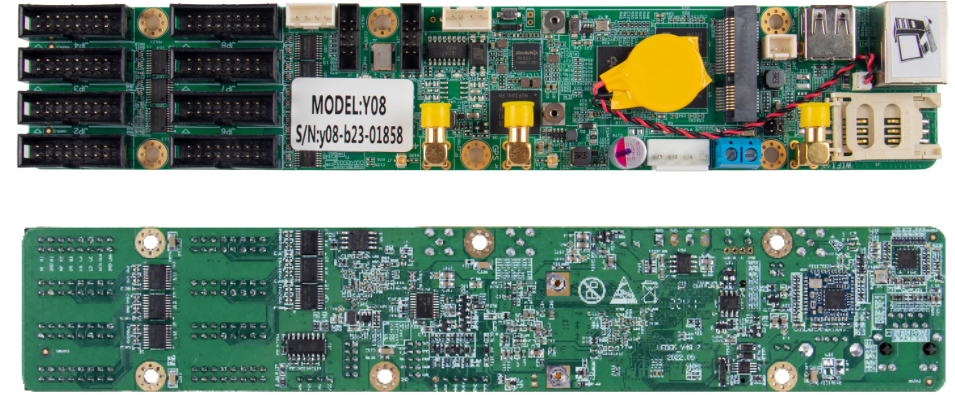

| Model Number: | Y08 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 2-3 working days |
| Payment Terms: | T/T,PayPal |
| Supply Ability: | 30 units per week |
| Operating Voltage: | 12V | Operating Current: | 0.9 A Max; 3A |
|---|---|---|---|
| Maximum Operating Power Consumption (W): | 15 | Operating Temperature: | -40 ℃ - +95℃ |
| Storage Temperature: | -40℃ - +75℃, Recommend 5℃ - 35℃ |
| Product features | Description | |
| Model |
Main: Y08 (no 4G), Y08-G (global access, recommended abroad) |
|
| Pixel | Y08: 170,000 dots, resolution 256 (W)*256 (H) or 512*128, custom resolution support | |
| Communication methods | Network port, WiFi, USB stick, optional 4G module | |
| System memory | 8GB Emmc+1GB LPDDR3 | |
| Operating systems | Android 9 | |
| WiFi | IEEE 802.11b/g/n 2.4G | |
| GPS | GNSS GPS/Beidou/Glonass | |
| Other interface support |
1. 1 stereo audio output. (Requires extension of an adapter card, optional) 2. 1 x USB 2.0 interface. 3. Support for importing and playing programmes from a USB stick.
|
|
| Configuration software | LedOK Express | |
| Supported Bands | ||
| Model | 3G/4G bands (optional) | Certification |
| Y09-CH |
-China (China/India) FDD-LTE: B1/3/5/8 TDD-LTE: B38/39/40/41 TDSCDMA: B34/39 WCDMA: B1/8 CDMA 1X/EVDO: BC0 GSM: B3/5/8 |
Mandatory certification: SRRC/ NAL/ CCC Other: WHQL |
| Y09-NA |
-North America (North America) FDD-LTE: B2/4/5/7/12/13/17 WCDMA: B2/4/5 |
Carrier certification: AT&T/ T-Mobile/ Rogers/ TelusVerizon/ AT&T (FirstNet)/ T-Mobile/ U.S. Cellular/ Rogers/ Telus Mandatory/conformance certification: FCC/ IC/ PTCRB Other: WHQL |
| Y09-EU |
-Eurasia (EMEA/Korea/Thailand/India and other Asian countries) FDD-LTE: B1/3/5/7/8/20 TDD-LTE: B38/40/41 WCDMA: B1/5/8 GSM: B3/5/8 |
Operator certification: Vodafone/Deutsche Telekom/SKT/ Telefónica Mandatory/conformance certification: GCF/ CE/ KC/ NCC/ RCM/ FAC/ NBTC/ ICASA Other: WHQL |
| Y09-LA |
-Latin America (Latin America / Australia / New Zealand) FDD-LTE: B1/3/5/7/8/28 TDD-LTE: B40 WCDMA: B1/2/5/8 GSM: B2/3/5/8 |
Mandatory certification: GCF/ FCC/ Anatel/ NCC/ RCM Other: WHQL |
| Y09-G |
-Global (Global) FDD-LTE: B1/2/3/4/5/7/8/12/13/ 18/19/20/25/26/28 TDD-LTE: B38/39/40/41 WCDMA: B1/2/4/5/8/6/19 GSM: Quad-band |
Carrier certification: Deutsche Telekom/ Verizon/ AT&T/ Sprint/ U.S. Cellular/ Telus Mandatory/conformance certification: GCF/ CE/ FCC/ PTCRB/ IC/ Anatel/ IFETEL/ SRRC/ NAL/ CCC/ KC/ NCC/ JATE/ TELEC/ RCM/ NBTC/ IMDA/ ICASA Other: WHQL |
| Y09-J |
-Japan (Japan) FDD-LTE: B1/3/8/18/19/26 TDD-LTE: B41 WCDMA: B1/6/8/19 |
Carrier certification: NTT DOCOMO/SoftBank/ KDDI Mandatory certification: JATE/ TELEC Other: WHQL |
| Type | Description | |
| Input interface | Power connector | 5V -12V power supply |
| LAN port | Gigabit network input | |
| USB port | USB2.0 interface, support for U disk programme import and playback, Debug interface | |
| Brightness line interface | Optional RL2 brightness sensor | |
| External testing | sos, eme, busy, spa, acc | |
| Output Connector | 485 interface | Baud rate 9600 |
| TTL/232 interface | Baud rate 9600 (two choices default TTL) | |
| GPS interface | GNSS GPS/Beidou/Glonass | |
| WIFI interface | IEEE 802.11b/g/n 2.4G | |
| 4G interface | 4G module interface | |
| Audio output connector |
Stereo audio output External operation indicator, external reset (optional and to be specified on order) |
|
| HUB75 interface | 8 x HUB75 signal outputs | |
| Power indicator | Red light always on | Normal |
| FPGA Indicator | Red slow flash | Normal operation |
| CPU indicator | Red slow flash | Normal operation |
| Working parameters | |
| Operating voltage (V) | 12V |
| Operating current (A) | 0.9A Max: 3A |
| Maximum operating power consumption (W) | 15 |
| Operating temperature (°C) | -40°C to +95°C |
| Storage temperature (°C) | -40°C ~75°C, recommended 5°C ~35°C |
| Humidity of the working environment (%) | 10% ~ 90%, no condensation |
1. It is recommended that the control card be powered by a separate (12V/3A or higher) power supply.
2. High operating temperatures can cause a dramatic drop in power supply efficiency. If the control card and module share the same power supply, please ensure that the control card has a stable voltage and a reasonable actual current supply.
