Focus on providing solutions for outdoor digital media and LED industrial applications
| Place of Origin: | China |
|---|---|
| Brand Name: | Sysolution |
| Certification: | FCC，CE certification |

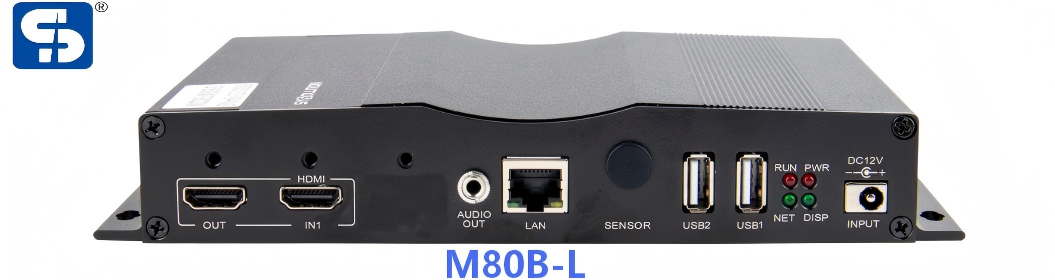

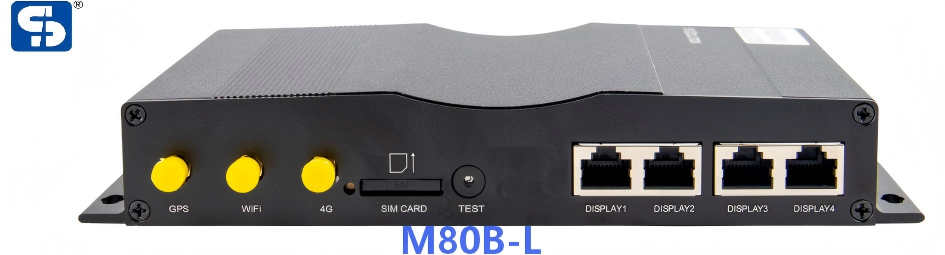

| Model Number: | M80B-L |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 2-3 working days |
| Payment Terms: | T/T,PayPal |
| Supply Ability: | 30 units per week |
| Operating Temperature: | -30℃ - +75℃ | PC Software: | LEDOK Express, LEDOK Lite APP, AIPS Cloud Platform |
|---|---|---|---|
| Supporting System: | Android 7.1 | Ethernet Port: | 4 |
| HDMI In: | 1 | HDMI Out: | 1 |
| Main Hardware Indicators | |
| Memory | 2G |
| Built-in Memory | EMMC 16G |
| Built-in ROM | 2KB EEPROM |
| Loading Pixels | 4 Display ports supporting 2.3 megapixels, max width 2560, max height 2560 |
| Operating System | Android 7.1 |
| Playing Mode | Support loop, timing, interpolation and other playing modes |
| Network Support | 4G, Ethernet, WiFi or Bluetooth 4.0 support, wireless peripheral expansion |
| Video Play | Support MP4 (AVC/H.264, DIVX, XVID) format |
| USB2.0 Interface | 1个USB HOST,1个USB OTG |
| Serial Port | IIC / TTL / 485 |
| GPS | External GPS (optional) |
| WIFI,BT | Built-in WIFI, BT4.0 (optional) |
| 4G | Built-in 4G module communication (optional) |
| Ethernet | 1 x, 10M/100M/1000M Adaptive Ethernet |
| HDMI Output | Support |
| Audio Output | 3.5mm audio port |
| Configuration Software | LedOK Express |
Working Parameters:
| Working Parameters | ||
| Input Voltage (V) | Independent DC power supply, 12V/6A or more, system and 30Wspeaker power supply at the same time. | |
| Operating temperature (°C) | -40~+75℃ | |
| Working Humidity (%) | 0%~80% Non-condensing | |
| Storage Temperature (℃) | -40~80℃ Recommend 5~35℃ | |
| Dimension (mm) | 185 (L) x 120 (W) | |
