| Place of Origin: | China |
|---|---|
| Brand Name: | SYSOLUTION |
| Certification: | CE, FCC, ROSH |
| Model Number: | M60H |
| Minimum Order Quantity: | 1 |
| Price: | USD |
| Packaging Details: | carton box |
| Delivery Time: | 2-3days |
| Payment Terms: | T/T |
| Supply Ability: | 10 pcs per 1 week |
| Display Out: | 2 | Brand: | Sysolution |
|---|---|---|---|
| Storage: | 1GB+8GB | Android OS: | Android 11 |
| Auto Splicing: | Support |

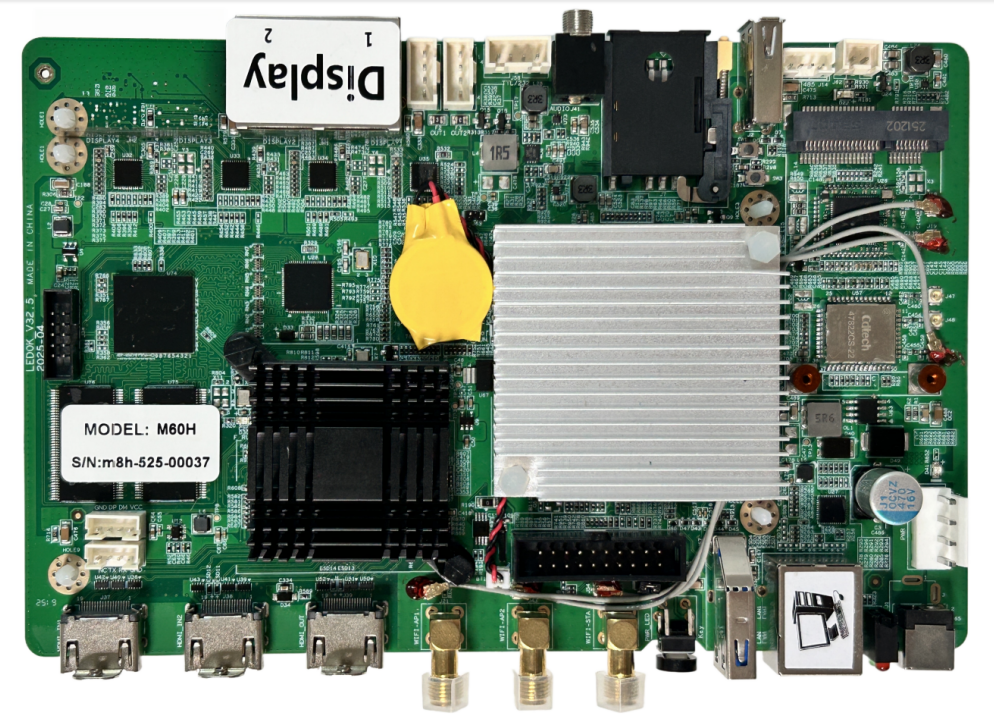

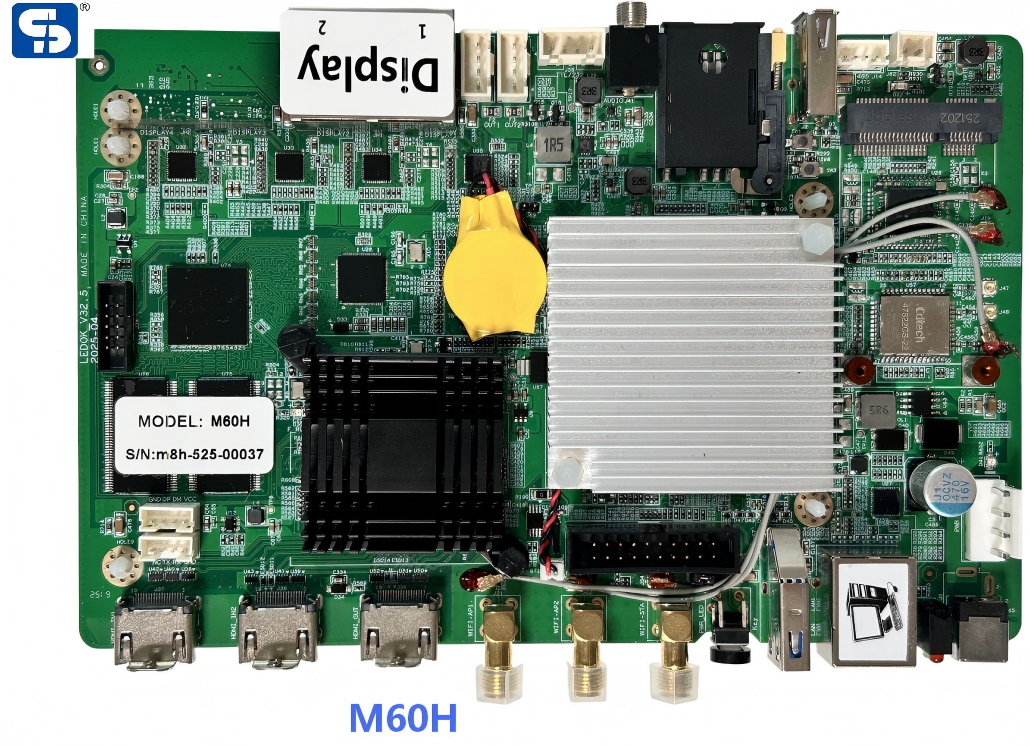

M60H multimedia control host is an integrated hardware platform featuring high‑performance computing, multimodal audio‑visual management and industrial‑grade IoT access. Equipped with a CPU clock speed of 2.0 GHz and a built‑in NPU delivering 1 TOPS computing power, it supports AI and deep‑learning tasks while balancing performance and expandability.
Built on customized Android 11, the system allows installation of third‑party applications and delivers highly flexible operational experience. Custom resolutions are supported. It enables HDMI loop‑through cascading and video wall splicing, with a maximum load capacity of 2.6 million pixels to meet multi‑screen splicing requirements.
Remote content creation, playback and device control are available via the LedOKlite APP. Remote‑controller operation and direct U‑disk playback are also supported. The bundled professional software LedOKExpress and LedOK lite deliver comprehensive multi‑mode device management.
Widely applied in smart meeting rooms, digital signage, industrial control, IoT integration, emergency command and other scenarios, the M60H serves as a full‑featured, stable and reliable embedded system solution.
Product Parameters:
| Key hardware indicators | |
| internal storage | 2G |
| Built-in memory | EMMC 16 G |
| Bit payload | 2 Ethernet ports, support 1.3 megapixels, |
| operating system | Android 11 |
| Playback mode | Supports various playback modes such as loop, timed and interlaced |
| Network support | 4G, Ethernet, support for WiFi, wireless peripheral expansion |
| Video playback | Support MP4 (H.265/H.264, DIVX, XVID) format |
| USB joggle | 1 USB 2.0 HOST, 1 USB 3.0 OTG |
| gorge line | IIC / TTL / 485/232 |
| WIFI6 | Provide AP2.4G/5G frequency band |
| WIFI 5,BT | WiFi 11ac + BT5.0 |
| GPS | External GPS (optional) |
| 4 G/5G | Built-in 4G/5G module communication (optional) |
| Ethernet | 1, 10M/100M/1000M adaptive Ethernet |
| HDMI output | support |
| Audio output | 3.5mm audio port |
| Configuration software | LedOK Express |
| operational parameter | ||
| input voltage (V) | DC12V | |
| working temperature (°C) | - 40~+7 5℃ | |
| Working humidity (%) | 0%~80% no condensation | |
| Storage temperature (℃) | -40~80℃ Recommended 5~35℃ | |
| size (mm) | 185 (long) x 120 (wide) | |
| weight(g) | 248g | |
