Focus on providing solutions for outdoor digital media and LED industrial applications
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SYSOLUTION |
| Certification: | CE, FCC, ROSH |

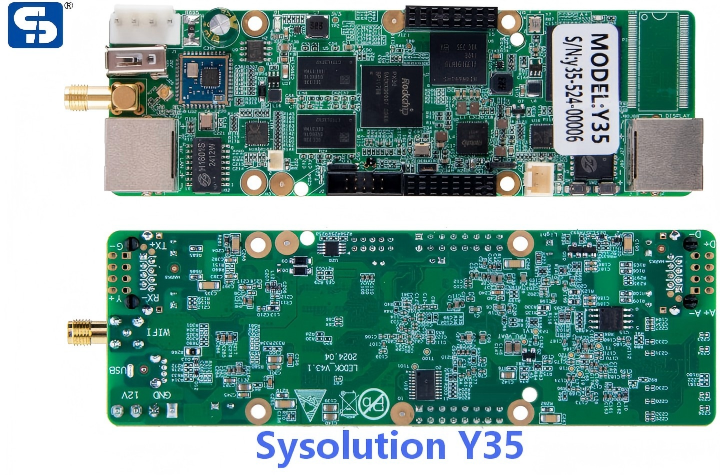

| Model Number: | Y35 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Carton Box |
| Payment Terms: | T/T,PayPal |
| Supply Ability: | 100pcs per month |
| Store Temperature: | -40℃ - 80℃ | Working Temp: | －40°C～＋90°C |
|---|---|---|---|
| Operating System: | Android 9.0 | Storage: | 1GB+8GB |
| Working Power Voltage: | 12V DC | 4G Modem: | Optional For Different Countries |
| Net Weight Per Unit: | 60g |
| Product features | Description | |
| Model | Main: Y35 (no 4G), Y35-CH (China 4G all-network), Y35-G (global, recommended for abroad) Y35-NA,Y35-EU,Y35-LA (available in bulk with cost in mind,recommend Global modem for sample) | |
| Pixel | Y35: 650,000 dots,resolution 1280(W)*512(H) or 512(W)*1280(H), customized resolution. | |
| Communication methods | Network port,WiFi, USB, optional 4G module | |
| CPU | Cortex-A35 quad-core at 1.5GHz | |
| GPU | Mali-G31MP2 OpenGL ES3.2, Vulkan 1.0, OpenCL 2.0 Dvalin-2EE | |
| System memory | 8GB Emmc+1GB LPDDR4 | |
| Operating systems | Android 9 | |
| WiFi | IEEE 802.11b/g/n 2.4G | |
| GPS | GNSS GPS/Beidou/Glonass (optional) | |
| Other interface support |
1. 1 x USB 2.0 interface. 2. Support for importing and playing programmes from by USB.
|
|
|
Configuration software |
LedOK Express | |
| Supported Bands | ||
| Model | 3G/4G bands (optional) | Certification |
| Y35-CH |
-China(China/India) FDD-LTE:B1/3/5/8 TDD-LTE:B38/39/40/41 TDSCDMA:B34/39 WCDMA:B1/8 CDMA 1X/EVDO:BC0 GSM:B3/5/8 |
Mandatory certification:SRRC/ NAL/ CCC Other:WHQL |
| Y35-NA |
-North America(North America) FDD-LTE:B2/4/5/7/12/13/17 WCDMA: B2/4/5 |
Carrier certification:AT&T/ T-Mobile/Rogers/ TelusVerizon/AT&T (FirstNet)/T-Mobile/U.S. Cellular/Rogers/ Telus Mandatory/conformance certification:FCC/ IC/ PTCRB Other:WHQL |
| Y35-EU |
-Eurasia(EMEA/Korea/Thailand/India and other Asian countries) FDD-LTE:B1/3/5/7/8/20 TDD-LTE:B38/40/41 WCDMA:B1/5/8 GSM:B3/5/8 |
Carrier certification:Vodafone/Deutsche Telekom/SKT/ Telefónica Mandatory/conformance certification:GCF/ CE/ KC/ NCC/RCM/ FAC/ NBTC/ICASA Other:WHQL |
| Y35-LA |
-Latin America(Latin America/ Australia/ New Zealand) FDD-LTE:B1/3/5/7/8/28 TDD-LTE:B40 WCDMA:B1/2/5/8 GSM:B2/3/5/8 |
Mandatory certification:GCF/ FCC/ Anatel/ NCC/RCM Other:WHQL |
| Y35-G |
-Global(Global) FDD-LTE:B1/2/3/4/5/7/8/12/13/ 18/19/20/25/26/28 TDD-LTE:B38/39/40/41 WCDMA:B1/2/4/5/8/6/19 GSM:Quad-band |
Carrier certification:Deutsche Telekom/ Verizon/ AT&T/ Sprint/U.S. Cellular/ Telus Mandatory/conformance certification:GCF/ CE/ FCC/ PTCRB/ IC/ Anatel/IFETEL/ SRRC/ NAL/ CCC/ KC/ NCC/ JATE/ TELEC/ RCM/ NBTC/ IMDA/ICASA Other:WHQL |
| Y35-J |
-Japan(Japan) FDD-LTE:B1/3/8/18/19/26 TDD-LTE:B41 WCDMA:B1/6/8/19 |
Carrier certification:NTT DOCOMO/SoftBank/ KDDI Mandatory certification:JATE/ TELEC Other:WHQL |
| Working parameters | |
| Operating voltage(V) | 12V |
| Operating current(A) | 0.9A Max:3A |
| Maximum operating power consumption(W) | 15 |
| Operating temperature(°C) | －40°C～＋90°C |
| Storage temperature(°C) | -40℃ ~75℃, recommended 5℃ ~35℃ |
| Humidity of the working environment(%) | 10% ~ 90%,no condensation |
| size(mm) | 134*43mm |
| net weight(g) | 60g |
| Weight with packaging box(g) | 190g |
1. It is recommended to use an independent (12V/3A or above) power supply for the control card；
2. High working temperature will cause a sharp decline in power efficiency. If the control card and the module share the same power supply, please ensure that the control card has a stable voltage and a reasonable actual current supply.
| Standard accessories | Size/Quantity | |
| WiFi patch antenna | 1.5m*1 | |
| 4G flat antenna | 1.5m*1 | |
| Optional accessories | Accessory function | |
| Humidity lineRH1 | Used to detect the humidity of the current external environment | |
| Brightness lineRL2 | Used to sense the brightness of the current environment | |
| Matching accessories (the above options, according to the order needs to place another corresponding model) | ||
