Focus on providing solutions for outdoor digital media and LED industrial applications
| Place of Origin: | China |
|---|---|
| Brand Name: | Sysolution |
| Certification: | FCC，CE certification |

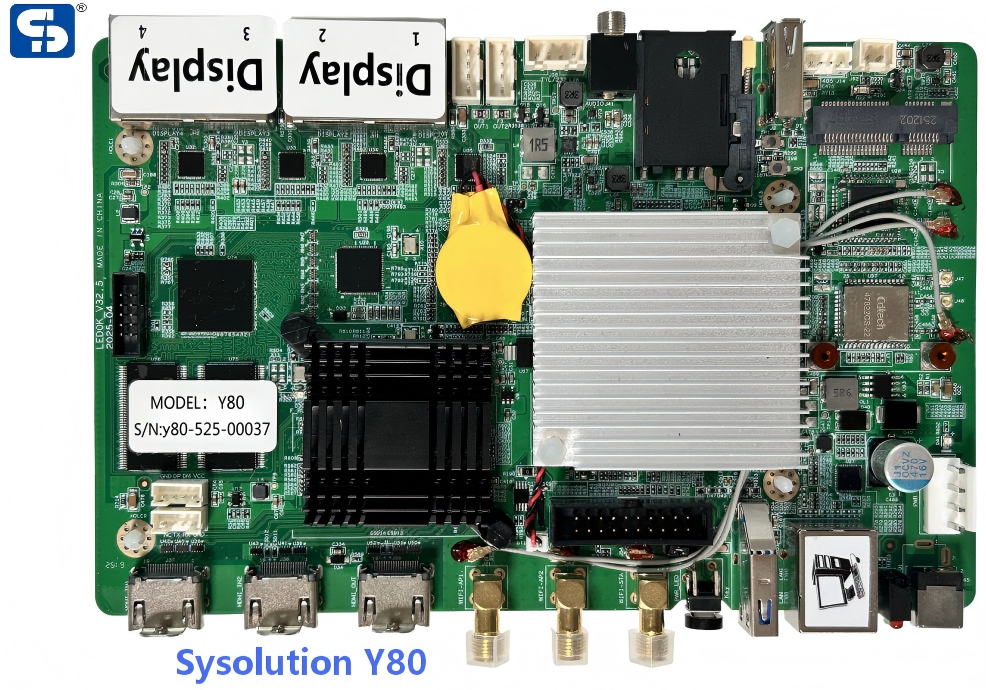

| Model Number: | Y80 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 2-3 working days |
| Payment Terms: | T/T,PayPal |
| Supply Ability: | 30 units per month |
| Operating Temperature: | -30℃ - +75℃ | Supporting System: | Android 11 |
|---|---|---|---|
| Ethernet Port: | 4 | HDMI In: | 2 |
| HDMI Out: | 1 | Storage: | 4GB+32GB |
| Main hardware specifications | |
| internal storage | 4G |
| Built-in memory | EMMC 32G |
| Bit payload | Four Ethernet ports, support 2.6 megapixels, maximum width 4096, maximum height 4096 Note: Asynchronous mode supports maximum width 4096, maximum height 2160 |
| operating system | Android 11 |
| Playback mode | Supports various playback modes such as loop, timed and interlaced |
| Network support | 4G, Ethernet, support WiFi, wireless peripheral expansion |
| Video playback | Support MP4 (H.265/H.264, DIVX, XVID) format |
| USB joggle | 1 USB 2.0 HOST, 1 USB 3.0 OTG |
| gorge line | IIC / TTL / 485/232 |
| WIFI6 | Provide AP2.4G/5G frequency band |
| WIFI 5,BT | WiFi 11ac + BT5.0 |
| GPS | External GPS (optional) |
| 4 G/5G | Built-in 4G/5G module communication (optional) |
| Ethernet | 1, 10M/100M/1000M adaptive Ethernet |
| HDMI output | support |
| Audio output | 3.5mm audio port |
| Configuration software | LedOK Express |
| Operational parameter | ||
| input voltage (V) | DC12V | |
| working temperature (°C) | - 40~+7 5℃ | |
| Working humidity (%) | 0%~80% no condensation | |
| Storage temperature (℃) | -40~80℃ Recommended 5~35℃ | |
| size (mm) | 205 (long) x 120 (wide) | |
Dimension:
