Place of Origin: | China |
---|---|
Brand Name: | Sysolution |
Certification: | ROHS, CE-EMC |
Model Number: | D60-16 |
Minimum Order Quantity: | 1 |
Price: | Negotiation |
Packaging Details: | carton box |
Delivery Time: | 2-3 working days |
Payment Terms: | T/T,PayPal |
Supply Ability: | 30 units per week |
Support Scan Line: | 1-64 Scan | Input Voltage: | DC3.5-5.5V |
---|---|---|---|
Rated Current: | 0.6A | Rated Power: | 3W |
Working Temperature: | -25℃~125℃ | Working Humidity: | 10%~90% |
Net Weight: | 106.7g | ||
Highlight: | 128K small Display Receiving Card,3W Integrated Display Receiving Card,128K LED Receiving Card |

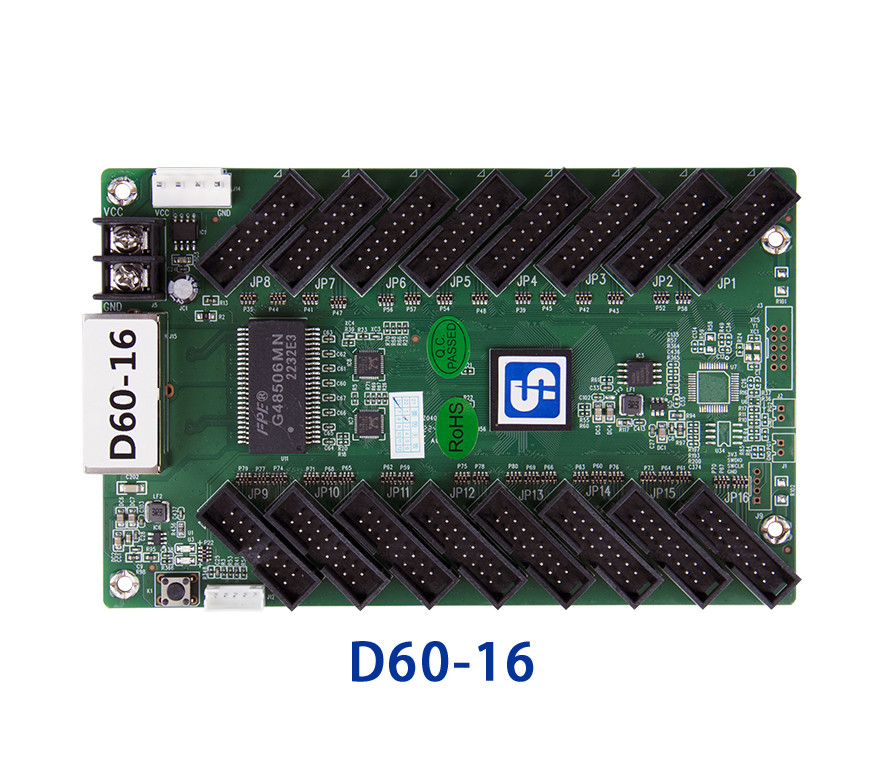

The D60-16 is a standard receiver card launched by Shenzhen Sysolution Company. Featuring 16 standard HUB75E interfaces, supporting up to 32 groups of RGB parallel data and carrying up to 768X256 pixels, it has powerful processing capability, ultra-stable performance and super high cost performance.
Three lines parallelism (RGB) |
Data interface/number | Drive |
Maximum loading (Pixels) |
Brightness correction loading (pixels) | Chromaticity correction loading (pixels) |
32 groups | HUB75E/16 | Normal | 768*256 | 512*256 | 256*320 |
PWM | 768*256 | 768*256 | 256*320 |
Number of cascade cards | Support scan line | ||
≤1000PCS | 1-64 scan |
Function | Description |
Improved display effect |
|
Upgraded operability |
|
Hardware Stability |
|
Software Intelligence |
|
32 groups of parallel data interface definitions
JP1-JP16 data interface definitions
Pin | 1 | 3 | 5 | 7 | 9 | 11 | 13 | 15 |
Definition | R0 | B0 | R1 | B1 | A | C | CLK | OE |
Pin | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
Definition | G0 | GND | G1 | E | B | D | LAT | GND |
J12 definitions
Pin | 1 | 2 | 3 | 4 | 5 |
Definition | GNDKEY- | KEY+ | LEDR- | 3V3LED+ | LEDG- |
Indicator | Position | Status | Description |
Status Indicator (Green) |
U1 | Uniform slow flash |
. The receiver card works normally, the network cable is connected normally, and there is no DVI signal input. |
Uniform fast flash | The receiver card works normally, the network cable is connected normally, and there is DVI signal input. | ||
Black Screen | No gigabit network signal | ||
Intermittent flash 3 times | The receiver card is working normally, the network cable circuit is connected, and there is DVI signal input. | ||
Status Indicator (Red) |
U3 | Ever Bright | Power supply is normal |
Electric parameter | Input Voltage | DC3.5-5.5V |
Rated current | 0.6A | |
Rated power | 3W | |
Working Environment | Working temperature | -20℃ - 70℃ |
Working humidity | 10%RH-90%RH | |
Storage Environment | Temperature | -25℃~125℃ |
Board Card Size | 144.02mmX91.19mm | |
Net Weight | 100.8g | |
Certification Information | RoHS compliant, CE-EMC compliant |
