Focus on providing solutions for outdoor digital media and LED industrial applications
| Place of Origin: | China |
|---|---|
| Brand Name: | Sysolution |
| Certification: | ROHS, CE-EMC |
| Model Number: | D60-12 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 2-3 working days |
| Payment Terms: | T/T,PayPal |
| Supply Ability: | 30 units per week |
| Support Scan Line: | 1-64 Scan | Input Voltage: | DC3.5-5.5V |
|---|---|---|---|
| Rated Current: | 0.6A | Rated Power: | 3W |
| Working Temperature: | -25℃～125℃ | Working Humidity: | 10％～90％ |
| Net Weight: | 106.7g |

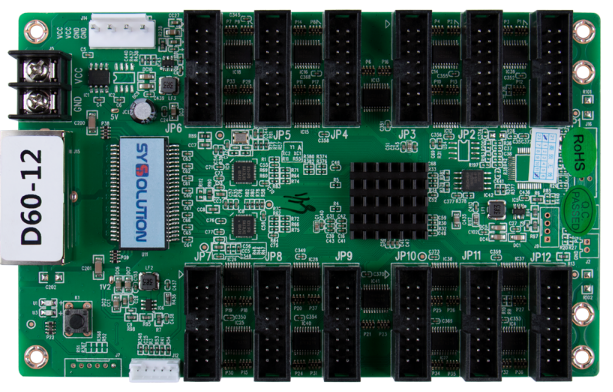

D60-12 is a standard receiving card launched by Sysolution Technology. It adopts 12standard HUB75E interfaces and supports up to 24 groups of RGB parallel data. Load up to 250,000 pixels; It has strong processing capacity, super stable performance and high cost performance.
| Three parallel lines(RGB) | Data interface/quantity | Maximum load (Pixels) | Recommended with load(Pixels) | |
| Module model | Load | |||
| 24 group | HUB75E/12个 | 250,000 | P3 and above | 2W12H |
| 128x768 | ||||
| P2.5-P2-P1.86-P1.538 | 1W12H or 2W6H | |||
| 512x512 |
128x768 or 256x384 (Take P2.5 as an example) |
|||
| P1.25 | 1W8H | |||
| 256x1024 | ||||
| Number of cascade cards | Support scan line | ||
| ≤1000PCS | 1-64 sweep |
| Function | Instructions |
| Improved Display Effect |
1. Support by lighting chrominance correction: with the correction software, the brightness and chrominance of each light point on the large screen can be corrected, effectively eliminating color difference, so that the brightness and chrominance of the display can reach a high degree of consistency, and improve the picture quality of the display. 2. Support multiple display effects schemes:With LedSet4.0 software to achieve refresh priority and grayscale priority effects. 3. Support screen rotation by 90° multiple:With the LedSet4.0 software to realize, it can rotate the screen of the receiving card by 90° multiple. 4. Support screen zoom function:With LedSet4.0 software, the receiving card pixelscan be scaled by multiples, and the screen can be enlarged and reduced. |
| Improved Operability |
1. Support receiving card serial number detection:Cooperate with the network debugging function of LedSet4.0 software, thereceiving card number and network portinformation will be displayed on the target box, and the user can obtain the location number andconnection line of thereceiving card. 2. Support data interface customization:With LedSet 3.0 software, the output data of the receiving card can be detected and edited. 3. Supports the construction of complex box:With the advanced layout of LedSet4.0 software, you can quickly arrange andstructure the box modules. 4. Supports the construction of complex large screens:In the complex display connection with LedSet4.0 software, the boxes can be quickly arranged and structured arbitrarily. |
| Improved Hardware Stability |
1. Network port hot backup:Network ports increase the reliability of serial connectionof the receiving card through the loop connection of the main and standby network cables. When one of the main and standby series lines fails, the other can ensure the normal display of the screen. 2. Support hardware reset function:The receiving card can restart the online hardware by itself after the hardware online upgrade is completed. |
| Intelligent Software Upgrade |
1. Support receiving card configuration parameter readback:Can read back the current receiving card configuration parameters on LedSet 3.0. 2. Support network cable bit error rate detection:On LedSet 4.0, the quality of the network cable communication signal connected to the system hardware can be monitored in real time to quickly judge the quality of the network cable and troubleshoot. 3. Communication monitoring function:Monitor the working status of the receiving card in real time on LedSet 4.0. |
| Electrical parameters | Input voltage | DC3.5-5.5V |
| Rated current | 0.6A | |
| Rated power | 3W | |
| Working environment | Working temperature | -20℃ - 70℃ |
| Working humidity | 10%RH-90%RH | |
| Storage environment | Working temperature | -25℃～125℃ |
| Board size | 144.02mmX91.19mm | |
| Net weight | 100.8g | |
| Certification Information | RoHS Compliant, CE-EMC Compliant | |
