Focus on providing solutions for outdoor digital media and LED industrial applications
| Place of Origin: | China |
|---|---|
| Brand Name: | Sysolution |
| Certification: | FCC，CE certification |
| Model Number: | M80B-H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 2-3 working days |
| Payment Terms: | T/T,PayPal |
| Supply Ability: | 30 units per week |
| Operating Temperature: | -30℃ - +75℃ | PC Software: | LEDOK Express, LEDOK Lite APP, AIPS Cloud Platform |
|---|---|---|---|
| Supporting System: | Android 7.1 | Ethernet Port: | 4 |
| HDMI In: | 2 | HDMI Out: | 1 |
| Main hardware specifications | |
| internal storage | 4G |
| Built-in memory | EMMC 32G |
| Bit payload | Four Ethernet ports, support 2.6 megapixels, maximum width 4096, maximum height 4096 Note: Asynchronous mode supports maximum width 4096, maximum height 2160 |
| operating system | Android 11 |
| Playback mode | Supports various playback modes such as loop, timed and interlaced |
| Network support | 4G, Ethernet, support WiFi, wireless peripheral expansion |
| Video playback | Support MP4 (H.265/H.264, DIVX, XVID) format |
| USB joggle | 1 USB 2.0 HOST, 1 USB 3.0 OTG |
| gorge line | IIC / TTL / 485/232 |
| WIFI6 | Provide AP2.4G/5G frequency band |
| WIFI 5,BT | WiFi 11ac + BT5.0 |
| GPS | External GPS (optional) |
| 4 G/5G | Built-in 4G/5G module communication (optional) |
| Ethernet | 1, 10M/100M/1000M adaptive Ethernet |
| HDMI output | support |
| Audio output | 3.5mm audio port |
| Configuration software | LedOK Express |
| Operational parameter | ||
| input voltage (V) | DC12V | |
| working temperature (°C) | - 40~+7 5℃ | |
| Working humidity (%) | 0%~80% no condensation | |
| Storage temperature (℃) | -40~80℃ Recommended 5~35℃ | |
| size (mm) | 205 (long) x 120 (wide) | |

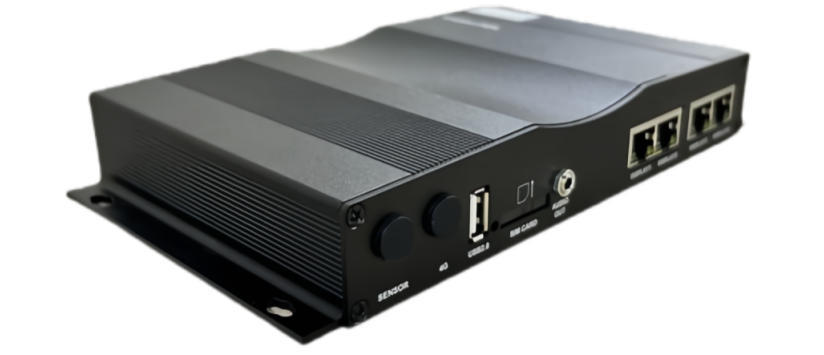

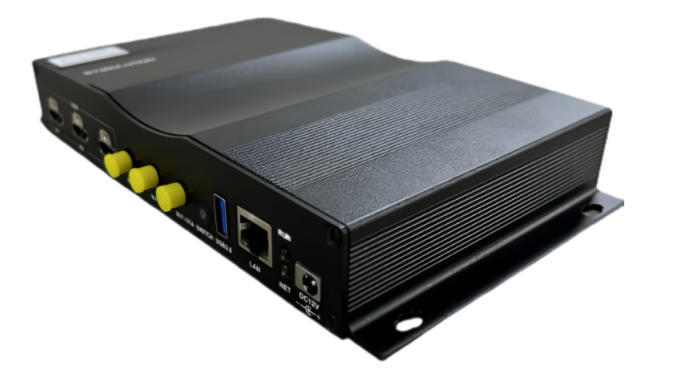

M80B-H Interface :
| No. | Interface | Description |
| 1 | HDMI input interface* 2 |
2*HDMI1.4. ● Supports up to 4K@30Hz. ● Minimum support 640x480@60Hz. ● Compliant with HDMI 1.4b standard and DVI 1.0 standard. ● Supports custom resolution. Width range: 640~4096 Height range: 480~4096 |
| 2 | ||
| 3 | HDMI output interface |
● Supports up to 4K@30Hz. ●HDMI1.4 monitoring. |
| 4 | WIFI-AP*2 | ● 2T2RWIFI6 antenna interface according to specifications. |
| 5 | WIFI-STA | WIFI5-STA antenna interface |
| 6 | Test button |
● Key: reserved function. ● Supports one-click synchronous and asynchronous switching |
| 7 | USB joggle |
●USB Debug. ● Supports connecting USB devices such as mouse, keyboard and U disk. |
| 8 | LAN joggle |
● Connected to a wired network. ● Connect to the host computer software. |
| 9 | Network operating lights | ● Network lights: Blinking network is normal. |
| 10 | DC12V power interface |
●4PIN:3.96mm 12V3A spacing. ●DC socket: 2.0mm 12V3A |
| 11 | System operating lamp | ● CPU running light: flashing normal operation. |
| 12 | Sensor interface | ● 485 sensor interface (brightness, temperature and humidity) |
| 13 | 4G antenna interface | ● 4G antenna. |
| 14 | USB joggle |
●USB Debug. ● Supports connecting USB devices such as mouse, keyboard and U disk. |
| 15 | SIM block | ●4G/5G SIM card slot |
| 16 | Audio interface | ● 3.5mm analog audio output. |
| 17 | DISPLAY interface×4 |
4th Road RJ45 ● Maximum load of a single network port: 65W at the point when the input source is 8bit. ● Up to 2.6 megapixels on load. |
