Focus on providing solutions for outdoor digital media and LED industrial applications
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SYSOLUTION |
| Certification: | CE, FCC, ROSH |
| Model Number: | Y12D |
| Minimum Order Quantity: | 1 |
| Price: | Negotiate |
| Packaging Details: | Carton Box |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100pcs per 1 month |
| Refresh Rate: | 3840Hz | Weight: | 250g |
|---|---|---|---|
| Operating System: | Android9.0 | Storage: | 1GB+8GB |
| Connectivity: | Wi-Fi, 4G,ETH,USB | Warranty: | 1 Year |
| Working Temperature: | -40℃~+90℃ | HUB Port: | 12 HUB75E |
Functional Features

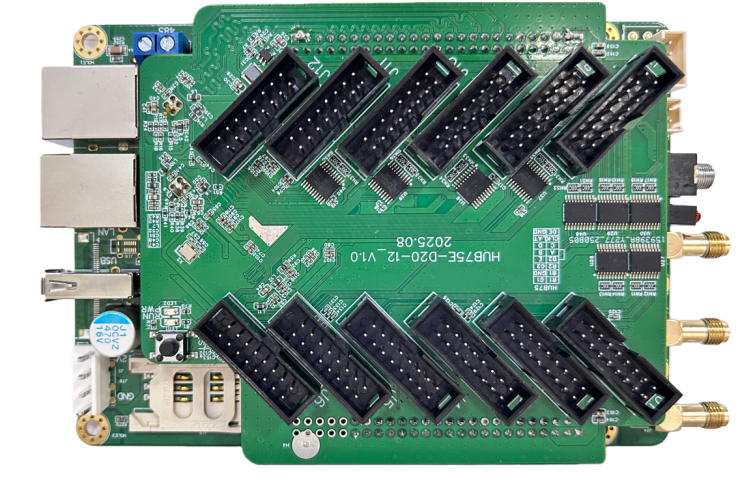

12 Hub75 outputs for direct output, ensuring stable image transmission;
The onboard RS485 interface facilitates front-end devices to adjust the brightness of the rear display screen, control the led screen, and perform command operations such as power on/off. An external eight element environmental sensor R68 is connected to display environmental information, eliminating the need for secondary development;
Support external GPS positioning and timing modules to ensure synchronized playback of multiple screens;
Supports communication methods: wired network, WIFI, and 4G, making it easy to deploy in the on-site environment. The 4G module is optional, and provide specific 4g modem for different countries;
Support secondary development and remote cluster control on cloud platforms, such as centralized program release, setting timed power on/off, remote power off, volume, brightness, etc;
Powerful processing performance, 4-core processor with a main frequency of 1.5GHz, supporting 1080P video hard decoding, 1GB of running memory, 8GB of internal storage space, and 4GB available to users;
The user terminal connects to the built-in WiFi hotspot of Y19, with a default SSID of "SN number" and a default password of "Sys12345678";
Supports GPS timing/synchronization, and NTP precise automatic timing;
Y19 can automatically adjust the brightness of the display screen and requires a matching brightness sensor;
Support playing programs according to the program schedule;
Supporting software: LEDCLOUD VIP Platform, LedOK Express, mobile app: LedOK Lite
Product Parameters
| Features | Description | |
| Type | Y12D | |
| Pixel | 250,000 pixels, maximum width 1920; maximum height 1920; custom resolution support | |
|
Communication mode |
Ethernet port,WiFi,USB,Optional 4G module | |
| CPU | Cortex-A35 4 core main frequency 1.5GHz | |
| GPU | Mali-G31MP2 OpenGL ES3.2, Vulkan 1.0, OpenCL 2.0 Dvalin-2EE | |
| System memory | 8GB Emmc+1GB DDR3L | |
| Operating system | Android 9 | |
| WiFi | IEEE 802.11b/g/n 2.4G | |
| GPS | GNSS GPS/Beidou/Glonass | |
|
Other interface support |
1. 1 channel stereo audio output 2. 1 USB2.0 port 3. Support play program through USB
|
|
|
Configuration software |
LedOK Express | |
| Type | 3G/4G band(optional) | Certificate |
| Y12D-CH |
-China(China/India) FDD-LTE:B1/3/5/8 TDD-LTE:B38/39/40/41 TDSCDMA:B34/39 WCDMA:B1/8 CDMA 1X/EVDO:BC0 GSM:B3/5/8 |
Compulsory Certification:SRRC/ NAL/ CCC Others:WHQL |
| Y12D-NA |
-North America FDD-LTE:B2/4/5/7/12/13/17 WCDMA: B2/4/5 |
Operator certification:AT&T/ T-Mobile/Rogers/ TelusVerizon/AT&T (FirstNet)/T-Mobile/U.S. Cellular/Rogers/ Telus Mandatory / conformance certification:FCC/ IC/ PTCRB Others:WHQL |
| Y12D-EU |
-Eurasia(EMEA/Korea/Thailand/India and other Asian countries) FDD-LTE:B1/3/5/7/8/20 TDD-LTE:B38/40/41 WCDMA:B1/5/8 GSM:B3/5/8 |
Operator certification:Vodafone/Deutsche Telekom/SKT/ Telefónica Mandatory / conformance certification:GCF/ CE/ KC/ NCC/RCM/ FAC/ NBTC/ICASA Others:WHQL |
| Y12D-LA |
-Latin America(LA/AU/Newsland) FDD-LTE:B1/3/5/7/8/28 TDD-LTE:B40 WCDMA:B1/2/5/8 GSM:B2/3/5/8 |
Compulsory Certification:GCF/ FCC/ Anatel/ NCC/RCM Others:WHQL |
| Y12D-G |
-Global FDD-LTE:B1/2/3/4/5/7/8/12/13/ 18/19/20/25/26/28 TDD-LTE:B38/39/40/41 WCDMA:B1/2/4/5/8/6/19 GSM:4 frequencies |
Operator certification:Deutsche Telekom/ Verizon/ AT&T/ Sprint/U.S. Cellular/ Telus Mandatory / conformance certification:GCF/ CE/ FCC/ PTCRB/ IC/ Anatel/IFETEL/ SRRC/ NAL/ CCC/ KC/ NCC/ JATE/ TELEC/ RCM/ NBTC/ IMDA/ICASA Others:WHQL |
| Y12D-J |
-Japan FDD-LTE:B1/3/8/18/19/26 TDD-LTE:B41 WCDMA:B1/6/8/19 |
Operator certification:NTT DOCOMO/SoftBank/ KDDI Compulsory Certification:JATE/ TELEC Others:WHQL |
Working Conditions
| Working parameters | ||
| Operating voltage(V) | 12V | |
| Operating current(A) | 0.9A Max:3A | |
|
Maximum operating power consumption(W) |
15 | |
| Operating temperature(°C) | －40°C～＋90°C | |
| Storage temperature(°C) | -40℃ ~75℃,recommended 5℃ ~35℃ | |
|
Humidity of the working environment(%) |
10% ~ 90%,no condensation | |
| Size | 140mm*99.5mm*23mm | |
| Net weight | Single card | 200g |
| With box | 400g | |
| Box dimensions | 302mm*214.9mm*75mm | |
It is recommended that the control card be powered by a separate (12V/3A or higher) power supply.
High operating temperatures can cause a dramatic drop in power supply efficiency. If the control card and module share the same power supply, please ensure that the control card has a stable voltage and a reasonable actual current supply.
Unit: mm
