Brand Name: | SYSOLUTION |
---|---|
Model Number: | M60B |
Minimum Order Quantity: | 1 |
Sysolution M60B-S supports -40℃ to 85℃ in high temperature, and supports network backup with gigabit dual network ports. Support access to cloud platform publishing, easy to achieve remote cluster control of display screens; Hardware and software design fully consider user deployment, operation, and maintenance scenarios, making deployment easier, operation more stable, and maintenance more efficient. With safe and stable functional design, save space for users, reduce wiring, can be used for advertising machine, transparent screen, mirror screen, shaped screen, door screen, shopping mall screen. Subway screen, special stage screen and other scenes with load.
M60B-S series adopts industrial-grade quad-core processor, integrates four Cortex-A35, dual-core Mali-G31 GPU, four-core master frequency 1.5GHz, can withstand 90℃ high temperature stable operation, memory support 1GB+8GB (compatible with 2GB+16GB) LPDDR3. The chip can support GSM, WCDMA, TD-SCDMA, EVDO, TDD-LTE, FDD-LTE and other systems, is a highly integrated product.

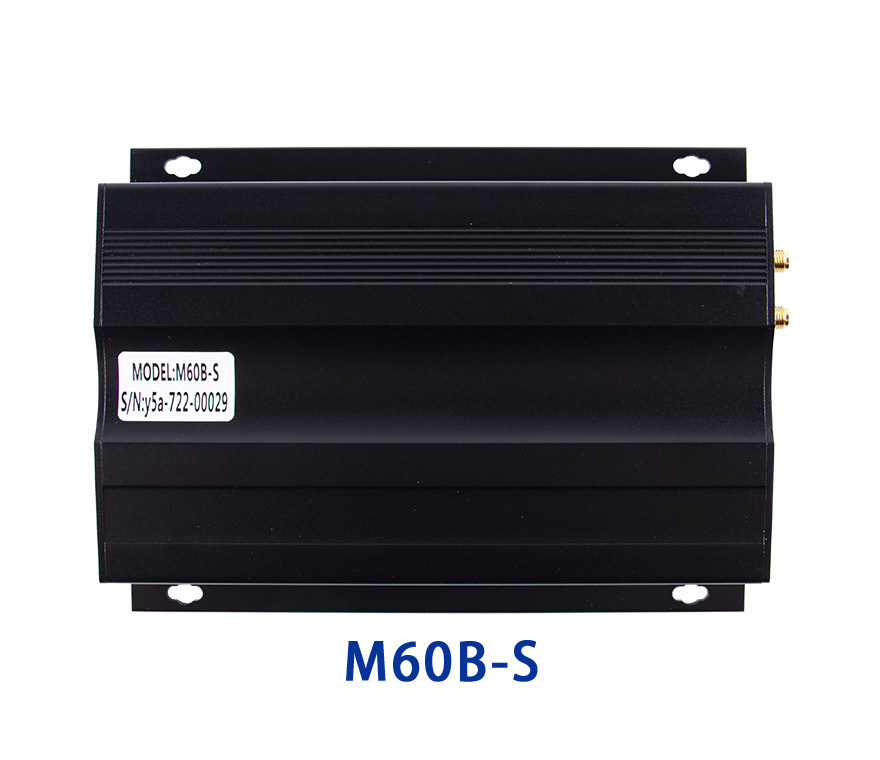

M60B-S with box
M60S Naked card
Features | Description | |
Type | M60S(naked card)/M60B-S (player box), optional 4G module, 60s-g global access to foreign countries | |
Pixel | M60B-S: 1.3 million pixels, Resolution 1280 (W) *720 (H) | |
Communication mode | Network port,WiFi,USB,Optional 4G module | |
CPU | Cortex-A35 4 Core main frequency 1.5GHz | |
GPU | Mali-G31MP2 OpenGL ES3.2, Vulkan 1.0, OpenCL 2.0 Dvalin-2EE | |
System memory | 8GB Emmc+1GB LPDDR3 | |
Operating syste | Android 9.0 | |
WiFi | IEEE 802.11b/g/n 2.4G | |
GPS | GNSS GPS/Beidou/Glonass | |
Other interface support |
|
|
Configuration software | LedOK Express | |
Support frequency band | ||
Type | 3G/4G(optional) | Certificate |
M60B-S-CH |
-China(China/India) FDD-LTE:B1/3/5/8 TDD-LTE:B38/39/40/41 TDSCDMA:B34/39 WCDMA:B1/8 CDMA 1X/EVDO:BC0 GSM:B3/5/8 |
Compulsory Certification:SRRC/ NAL/ CCC Others :WHQL |
M60B-S-G |
-North America FDD-LTE:B2/4/5/7/12/13/17 WCDMA: B2/4/5 |
Operator certification:AT&T/ T-Mobile/Rogers/ TelusVerizon/AT&T (FirstNet)/T-Mobile/U.S. Cellular/Rogers/ Telus Mandatory / conformance certification:FCC/ IC/ PTCRB Others :WHQL |
M60B-S-NA |
-Eurasia(EMEA/Korea/Thailand/India and other Asian countries) FDD-LTE:B1/3/5/7/8/20 TDD-LTE:B38/40/41 WCDMA:B1/5/8 GSM:B3/5/8 |
Operator certification:Vodafone/Deutsche Telekom/SKT/ Telefónica Mandatory / conformance certification:GCF/ CE/ KC/ NCC/RCM/ FAC/ NBTC/ICASA Others :WHQL |
M60B-S-EU |
-Latin America(LA/AU/Newsland) FDD-LTE:B1/3/5/7/8/28 TDD-LTE:B40 WCDMA:B1/2/5/8 GSM:B2/3/5/8 |
Compulsory Certification:GCF/ FCC/ Anatel/ NCC/RCM Others:WHQL |
M60B-S-LA |
-Global FDD-LTE:B1/2/3/4/5/7/8/12/13/ 18/19/20/25/26/28 TDD-LTE:B38/39/40/41 WCDMA:B1/2/4/5/8/6/19 GSM:4 frequencies |
Operator certification:Deutsche Telekom/ Verizon/ AT&T/ Sprint/U.S. Cellular/ Telus Mandatory / conformance certification:GCF/ CE/ FCC/ PTCRB/ IC/ Anatel/IFETEL/ SRRC/ NAL/ CCC/ KC/ NCC/ JATE/ TELEC/ RCM/ NBTC/ IMDA/ICASA others:WHQL |
M60B-S-J |
-Japan FDD-LTE:B1/3/8/18/19/26 TDD-LTE:B41 WCDMA:B1/6/8/19 |
Operator certification:NTT DOCOMO/SoftBank/ KDDI Compulsory Certification:JATE/ TELEC Others :WHQL |
M60B-S Product Interface Label (with box)
Front
Reverse
Working parameters | |
Working voltage (V) | 12V |
Working current (A) | 0.9A Max:3A |
Maximum working power consumption(W) | 10 W |
working temperature (°C) | -40°C~+85°C |
Storage temperature (°C) | -40℃ ~+75℃,Recommend +5℃ ~+35℃ |
Humidity of working environment (%) | 10% ~ 90%,No condensation |
Size(mm) | 170cm×99.5cm |
1. It is recommended to use an independent (12V/3A or above) power supply for the control card;
2. High working temperature will cause a sharp decline in power efficiency. If the control card and the module share the same power supply, please ensure that the control card has a stable voltage and a reasonable actual current supply.
Installation dimensions of control box M60B-S
Installation dimensions of bare card M60S
Standard fittings | Size/quantity | |
WiFi patch antenna | 1.5m*1 | |
4G sucker antenna | 3m*1 | |
Optional accessories | Accessory function | |
Humidity line RH1 | Test the humidity of the current environment | |
Brightness line RL2 | Used to sense the brightness of the current environment | |
Optional multi-function card RS5 integrated synchronization module, 5-way voltage detection, opening and closing doors and smoke interface (optional RD1 door sensor, RM1 smoke sensor) | Picture timing synchronization, power supply detection | |
8-in-1 Environmental Sensor R68 | Temperature, humidity, illumination, PM2.5, PM10, noise, wind speed, wind direction | |
Electricity statistics RM1275 | Real-time view of daily electricity consumption | |
G11 GMous Multi-mode | GPS Positioning module | |
30W Horn *2 RLB1 | Two remote broadcasts per screen, real-time shouts | |
Accessories that can be matched (the above selection, according to the needs of the order under the corresponding model) |
