Product Introduction
Thank you for purchasing our LED control card, and we hope you will enjoy the excellent performance of this product. This LED control card is designed to comply with international and industry standards, but may still cause personal injury and property damage if not operated properly. In order to avoid possible dangers and to benefit as much as possible from your equipment, please follow the relevant instructions for use in this manual when installing and operating the product.
Sysolution Y39 is a series of high-performance core board with industrial-grade quad-core processor, running frequency 1.5GHz, memory support 1GB + 8GB (compatible with 2GB + 16GB) LPDDR3, can fully satisfy the smooth playing of pictures, videos, flash animations, text and other contents. Support IOS or Android operating system mobile phone App to publish contents. After accessing to internet, client can remote control it anytime, anywhere through software platform. At the same time, compared with the conventional asynchronous card, it obsesses smaller, thinner and lighter design, which greatly saving the installation and deployment space.
It can be used in small band-carrying scenarios such as on-board screens, small traffic screens, community screens, light pole screens and so on.
Functional Features

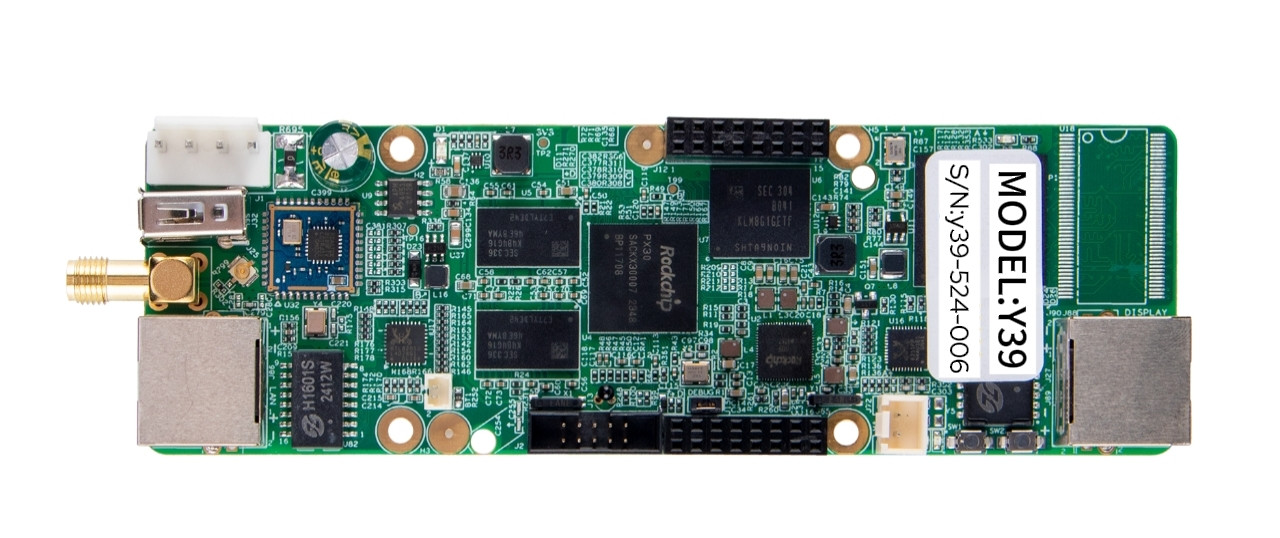

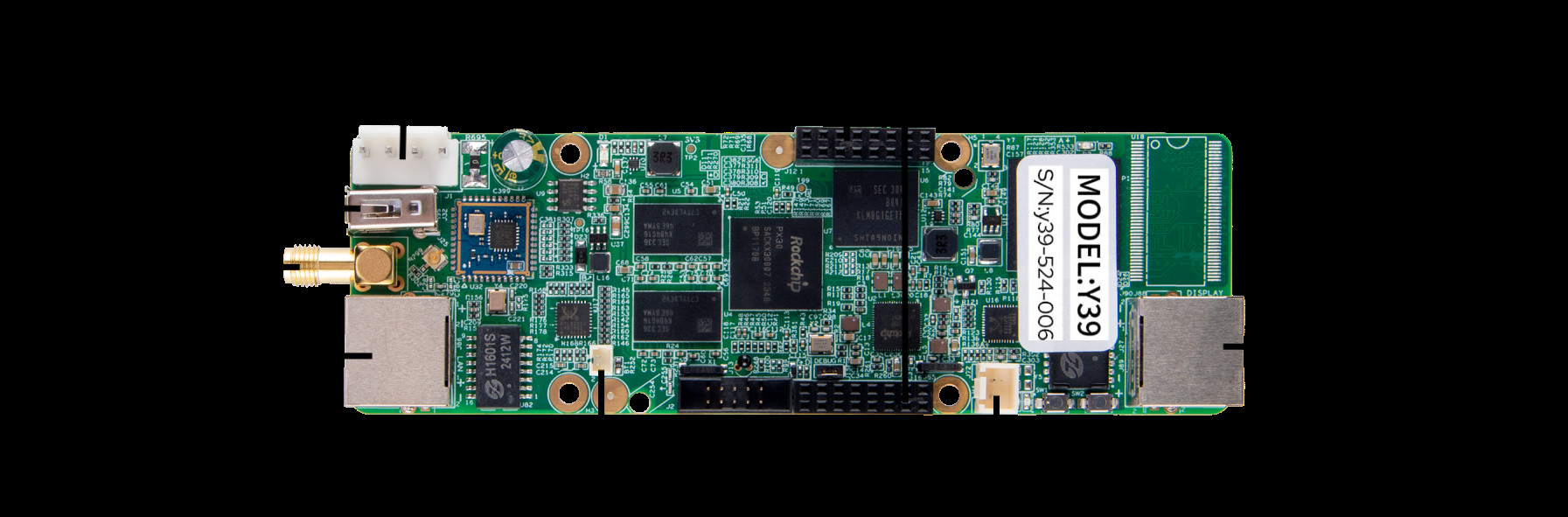

Product Appearance
Product Parameters
| Product features | Description | |
| Model | Main: Y39 (no 4G), Y39-G (global, recommended for abroad) Y39-NA,Y39-EU,Y39-LA (available in bulk with cost in mind,recommend Global modem for sample) | |
| Pixel | Y39: 650,000 dots,resolution 1280(W)*512(H) or 512(W)*1280(H), customized resolution. | |
| Communication methods | Network port,WiFi, USB, optional 4G module | |
| CPU | Cortex-A35 quad-core at 1.5GHz | |
| GPU | Mali-G31MP2 OpenGL ES3.2, Vulkan 1.0, OpenCL 2.0 Dvalin-2EE | |
| System memory | 8GB Emmc+1GB LPDDR4 | |
| Operating systems | Android 9 | |
| WiFi | IEEE 802.11b/g/n 2.4G | |
| GPS | GNSS GPS/Beidou/Glonass (optional) | |
| Other interface support |
1. 1 x USB 2.0 interface. 2. Support for importing and playing programs from by USB.
|
|
|
Configuration software |
LedOK Express | |
| Supported Bands | ||
| Model | 3G/4G bands (optional) | Certification |
| Y39-NA |
-North America(North America) FDD-LTE:B2/4/5/7/12/13/17 WCDMA: B2/4/5 |
Carrier certification:AT&T/ T-Mobile/Rogers/ TelusVerizon/AT&T (FirstNet)/T-Mobile/U.S. Cellular/Rogers/ Telus Mandatory/conformance certification:FCC/ IC/ PTCRB Other:WHQL |
| Y39-EU |
-Eurasia(EMEA/Korea/Thailand/India and other Asian countries) FDD-LTE:B1/3/5/7/8/20 TDD-LTE:B38/40/41 WCDMA:B1/5/8 GSM:B3/5/8 |
Carrier certification:Vodafone/Deutsche Telekom/SKT/ Telefónica Mandatory/conformance certification:GCF/ CE/ KC/ NCC/RCM/ FAC/ NBTC/ICASA Other:WHQL |
| Y39-LA |
-Latin America(Latin America/ Australia/ New Zealand) FDD-LTE:B1/3/5/7/8/28 TDD-LTE:B40 WCDMA:B1/2/5/8 GSM:B2/3/5/8 |
Mandatory certification:GCF/ FCC/ Anatel/ NCC/RCM Other:WHQL |
| Y39-G |
-Global(Global) FDD-LTE:B1/2/3/4/5/7/8/12/13/ 18/19/20/25/26/28 TDD-LTE:B38/39/40/41 WCDMA:B1/2/4/5/8/6/19 GSM:Quad-band |
Carrier certification:Deutsche Telekom/ Verizon/ AT&T/ Sprint/U.S. Cellular/ Telus Mandatory/conformance certification:GCF/ CE/ FCC/ PTCRB/ IC/ Anatel/IFETEL/ SRRC/ NAL/ CCC/ KC/ NCC/ JATE/ TELEC/ RCM/ NBTC/ IMDA/ICASA Other:WHQL |
| Y39-J |
-Japan(Japan) FDD-LTE:B1/3/8/18/19/26 TDD-LTE:B41 WCDMA:B1/6/8/19 |
Carrier certification:NTT DOCOMO/SoftBank/ KDDI Mandatory certification:JATE/ TELEC Other:WHQL |
Interface
| No. | Interface Type | Description |
| 1 | display interface | Gigabit network output |
| 2 | LAN port | Hundred megabit network port input |
| 3 | USB port | USB2.0 interface, support for U disk programme import and playback,Debug interface |
| 4 | Power connector | 12V power supply |
| 5 | Battery Interface | Connected to clock battery |
| 6 | WIFI interface | IEEE 802.11b/g/n 2.4G |
| 7 | Brightness line interface | RL2 |
| 8 | External expansion interface | External option modules |
Working Conditions
| Working parameters | |
| Operating voltage(V) | 12V |
| Operating current(A) | 0.9A Max:3A |
| Maximum operating power consumption(W) | 15 |
| Operating temperature(°C) | －40°C～＋90°C |
| Storage temperature(°C) | -40℃ ~75℃, recommended 5℃ ~35℃ |
| Humidity of the working environment(%) | 10% ~ 90%,no condensation |
Important tips:
1. The main control card must use more than 12V5A independent switching power supply, shared screen 5V switching power supply leads to low system voltage, the system card failure increased by 50%;
2. High operating temperatures can cause a dramatic drop in power supply efficiency. If the control card and module share the same power supply, please ensure that the control card has a stable voltage and a reasonable actual current supply.
Dimension Drawing
Unit: mm
Accessories
| Standard accessories | Size/quantity |
| WiFi Patch Antenna | 1.5m*1 |
| 4G Suction Cup Antenna | 3m*1 |
Notes:
Factory optional on-board IoT chip, the use of SYSOLUTION technology comes with the provision of IoT chip does not require any operator whitelisting operation, can be used directly. With the self-provided IoT card requires real name system, and need to add the platform related domain names. It has a lot of unstable factors.
Advantages of the chip: high temperature resistance, not easy to deform, stable, not easy to fall off, long time use will not age, reasonable tariffs, recharge simple, after-sales service is guaranteed (if need for other specifications of the accessories, please place an order for instructions)
| Optional accessories | Accessory functions |
| RH1 Humidity line RH1 | For detecting the current humidity of the external environment |
| RL2 Luminance line RL2 | For sensing the brightness of the current environment |
| 8 in1 Environmental Sensor R68 | Temperature, humidity, illuminance, PM2.5, PM10, noise,wind speed,wind direction |
| RM1275 Power statistics RM1275 |
View daily electricity consumption in real time |
| G10 | GPS positioning module |
| speaker*2 RLB1 |
2 remote broadcasts per screen with real-time shouting |
| Matching accessories available(optional for the above, additional models to be ordered on request) | |
WiFi Patch Antenna
4G Suction Cup Antenna (Please specify if have other requirements when placing an order)
